Kato

HD820IIILC

Excavator

Operating Weight
44,754 lb
Max Digging Depth
224 in
Max Digging Depth
245 in
Net Power
147.6 hp
All excavators

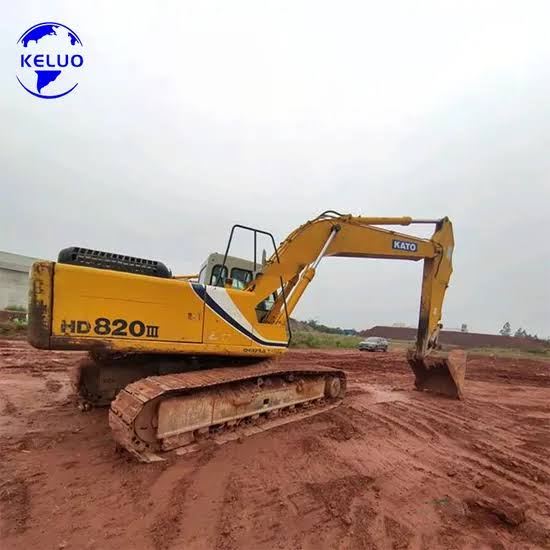

Kato HD820IIILC Excavator
1 / 5
Image 1 of 5
Image: lectura-specs.com

Specifications

49 data points

Operating Specifications

Operating Specifications specifications
Operating Weight44,754 lb
Fuel Capacity84.6 gal
Hydraulic Pump Flow Capacity124.2 gal/min
Hydraulic System Fluid Capacity68.7 gal
Hydraulic System Relief Valve Pressure4,772 psi
Engine Oil Capacity5.9 gal
Cooling System Fluid Capacity6.1 gal
Operating Voltage24 V
Swing Drive Fluid Capacity1.4 gal
Alternator Supplied Amperage35 A

Engine

Engine specifications
Engine ModelC 6D34-TLE2A
Displacement358 in³
Net Power147.6 hp
Aspirationturbocharged
Max Torque428 lb-ft

Dimensions

Dimensions specifications
Ground Clearance19 in
Height - Top of Cab110 in
Tail Swing Radius109 in
Width to Outside of Tracks119 in
Removal Counterweight Clearance42 in

Undercarriage

Undercarriage specifications
Ground Pressure6 psi
Track Gauge95 in
Max Travel Speed3.5 mph
Shoe Size24 in
Number of Shoes per Side49

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth224 in
Max Reach Along Ground348 in
Max Loading Height252 in
Max Vertical Wall Digging Depth192 in
Max Cutting Height366 in

Bucket

Bucket specifications
Reference Bucket Capacity1.10 yd³
Maximum Bucket Capacity1.50 yd³
Minimum Bucket Capacity0.60 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed14 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth245 in
Max Vertical Wall Digging Depth223 in
Max Cutting Height377 in
Max Loading Height261 in
Max Reach Along Ground366 in

Boom/Stick Excavator Option 3

Boom/Stick Excavator Option 3 specifications
Max Digging Depth264 in
Max Cutting Height385 in
Max Loading Height270 in
Max Vertical Wall Digging Depth241 in
Max Reach Along Ground384 in

Boom/Stick Excavator Option 4

Boom/Stick Excavator Option 4 specifications
Max Digging Depth304 in
Max Cutting Height402 in
Max Reach Along Ground420 in
Max Loading Height287 in
Max Vertical Wall Dig Depth283 in
