Kato

HD820V

Excavator

Operating Weight
43,872 lb
Max Digging Depth
264 in
Net Power
150.9 hp
All excavators

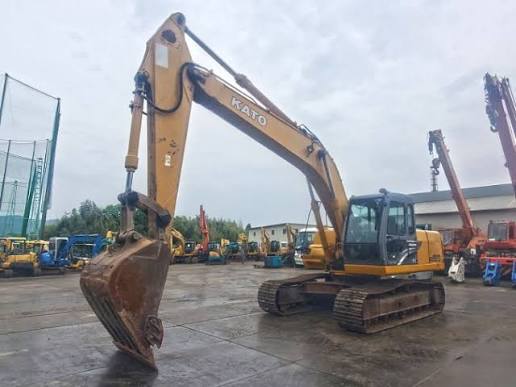

Kato HD820V Excavator
1 / 5
Image 1 of 5
Image: lectura-specs.com

Specifications

20 data points

Operating Specifications

Operating Specifications specifications
Operating Weight43,872 lb
Hydraulic Pump Flow Capacity124.2 gal/min
Hydraulic System Relief Valve Pressure5,265 psi

Engine

Engine specifications
Engine Model4M50-TLE3A
Displacement299 in³
Power Measured @2,050 rpm
Net Power150.9 hp

Dimensions

Dimensions specifications
Ground Clearance19 in
Length of Track on Ground133 in
Tail Swing Radius109 in
Width to Outside of Tracks111 in

Undercarriage

Undercarriage specifications
Max Travel Speed3.5 mph
Shoe Size24 in

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth264 in
Max Reach Along Ground391 in
Max Loading Height270 in
Max Vertical Wall Digging Depth231 in
Shipping Length of Unit373 in
Shipping Height of Unit118 in

Bucket

Bucket specifications
Reference Bucket Capacity1.10 yd³
