Kato

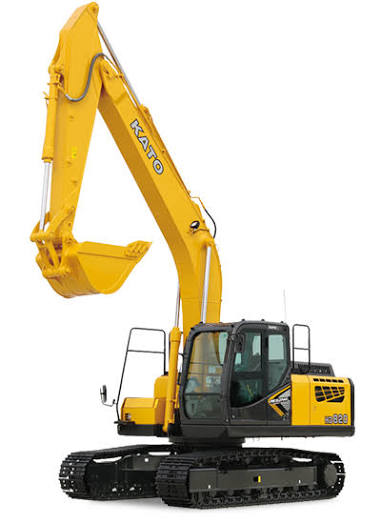

HD823MRIIILC
- Operating Weight
- 48,502 lb
- Max Digging Depth
- 245 in
- Max Digging Depth
- 264 in
- Net Power
- 147.6 hp
1 / 5
Image 1 of 5
Specifications
32 data points
Operating Specifications
| Operating Weight | 48,502 lb |
|---|---|
| Fuel Capacity | 84.6 gal |
| Hydraulic System Fluid Capacity | 68.7 gal |
| Hydraulic System Relief Valve Pressure | 4,772 psi |
Engine
| Engine Model | C 6D34-TLE2A |
|---|---|
| Net Power | 147.6 hp |
| Aspiration | turbocharged |
Dimensions
| Ground Clearance | 19 in |
|---|---|
| Height - Top of Cab | 115 in |
| Tail Swing Radius | 89 in |
| Width to Outside of Tracks | 119 in |
| Removal Counterweight Clearance | 42 in |
Undercarriage
| Ground Pressure | 7 psi |
|---|---|
| Track Gauge | 95 in |
| Max Travel Speed | 3.5 mph |
| Shoe Size | 24 in |
Boom/Stick Excavator Option 1
| Max Digging Depth | 245 in |
|---|---|
| Max Loading Height | 264 in |
| Max Vertical Wall Digging Depth | 221 in |
| Max Cutting Height | 377 in |
Bucket
| Reference Bucket Capacity | 0.80 yd³ |
|---|---|
| Maximum Bucket Capacity | 1.50 yd³ |
| Minimum Bucket Capacity | 0.60 yd³ |
Swing Mechanism
| Swing Speed | 14 rpm |
|---|
Boom/Stick Excavator Option 2
| Max Digging Depth | 264 in |
|---|---|
| Max Vertical Wall Digging Depth | 241 in |
| Max Cutting Height | 385 in |
| Max Loading Height | 270 in |
Boom/Stick Excavator Option 3
| Max Digging Depth | 304 in |
|---|---|
| Max Cutting Height | 407 in |
| Max Loading Height | 291 in |
| Max Vertical Wall Digging Depth | 282 in |
