Kawasaki
Caterpillar
980G
Wheel Loader
55 specifications
1 / 5

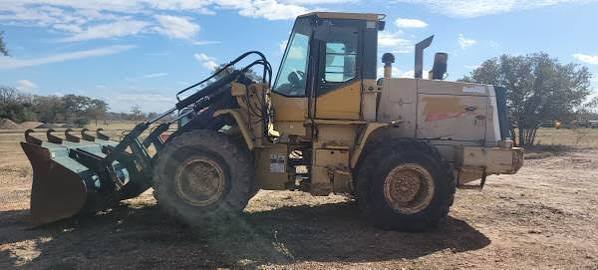

Image 1 of 5
Specifications
43 data points
Operating Specifications
| Operating Weight | 92,950 lb |
|---|---|
| Fuel Capacity | 158.6 gal |
| Tire Size | 29.5-29-28PR (L-4) |
| Hydraulic System Fluid Capacity | 158.6 gal |
| Static Tipping Weight | 61,980 lb |
| Operating Voltage | 24 V |
| Turning Radius | 332 in |
| Engine Oil Fluid Capacity | 15.6 gal |
| Rear Axle Oscillation | 24 ° |
| Alternator Supplied Amperage | 75 A |
| Front Axle/Diff Fluid Capacity | 35.2 gal |
| Rear Axle/Diff Fluid Capacity | 35.2 gal |
| Cooling System Fluid Capacity | 26.5 gal |
| Transmission Fluid Capacity | 21.2 gal |
Engine
| Engine Model | KT19-C |
|---|---|
| Displacement | 1,150 in³ |
| Power Measured @ | 2,100 rpm |
| Net Power | 383.0 hp |
| Number of Cylinders | 6 |
| Aspiration | turbocharged |
Hydraulic System
| Pump Flow Capacity | 50.0 gal/min |
|---|---|
| Raise Time | 9.1 s |
| Lower Time | 4.8 s |
| Dump Time | 1.5 s |
| Relief Valve Setting | 2,490 psi |
| Pump Type | gear type |
Dimensions
| Ground Clearance | 24 in |
|---|---|
| Height - Top of Cab | 163 in |
| Wheelbase | 151 in |
| Width Over Tires | 144 in |
| Reach at Max Lift and Dump | 64 in |
| Length with Bucket on Ground | 372 in |
| Hinge Pin - Max Height | 194 in |
Transmission
| Max Speed - Forward | 17.4 mph |
|---|---|
| Max Speed - Reverse | 18.6 mph |
| Transmission Type | full power shift |
| Number of Forward Gears | 3 |
| Number of Reverse Gears | 3 |
Bucket
| Bucket Capacity - heaped | 8.31 yd³ |
|---|---|
| Bucket Capacity - struck | 7.00 yd³ |
| Dump Clearance at Max Raise | 141 in |
| Breakout Force | 62,660 lb |
| Bucket Width | 149 in |
