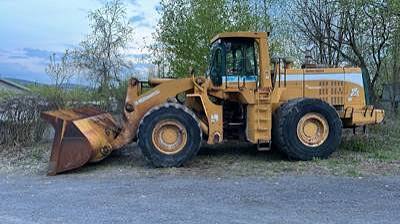

Kawasaki
Caterpillar
980G
Wheel Loader
55 specifications
1 / 5
Image 1 of 5
Specifications
44 data points
Operating Specifications
| Operating Weight | 96,585 lb |
|---|---|
| Fuel Capacity | 163.8 gal |
| Tire Size | 35/65-33-24PR (L-4) |
| Hydraulic System Fluid Capacity | 124.2 gal |
| Static Tipping Weight | 62,830 lb |
| Operating Voltage | 24 V |
| Turning Radius | 325 in |
| Engine Oil Fluid Capacity | 17.7 gal |
| Rear Axle Oscillation | 26 ° |
| Alternator Supplied Amperage | 75 A |
| Front Axle/Diff Fluid Capacity | 47.6 gal |
| Rear Axle/Diff Fluid Capacity | 47.6 gal |
| Cooling System Fluid Capacity | 33.9 gal |
| Transmission Fluid Capacity | 22.5 gal |
Engine
| Engine Model | QSK19 |
|---|---|
| Displacement | 1,150 in³ |
| Power Measured @ | 2,000 rpm |
| Net Power | 410.0 hp |
| Number of Cylinders | 6 |
| Aspiration | turbocharged & after cooled |
| Torque Measured @ | 1,300 rpm |
Hydraulic System
| Pump Flow Capacity | 48.1 gal/min |
|---|---|
| Raise Time | 8.7 s |
| Lower Time | 4.4 s |
| Dump Time | 2.1 s |
| Relief Valve Setting | 3,000 psi |
| Pump Type | gear type |
Dimensions
| Ground Clearance | 23 in |
|---|---|
| Height - Top of Cab | 165 in |
| Wheelbase | 159 in |
| Width Over Tires | 142 in |
| Reach at Max Lift and Dump | 70 in |
| Length with Bucket on Ground | 427 in |
| Hinge Pin - Max Height | 199 in |
Transmission
| Max Speed - Forward | 19.3 mph |
|---|---|
| Max Speed - Reverse | 13.5 mph |
| Transmission Type | full powershift |
| Number of Forward Gears | 4 |
| Number of Reverse Gears | 3 |
Bucket
| Bucket Capacity - heaped | 8.31 yd³ |
|---|---|
| Bucket Capacity - struck | 7.00 yd³ |
| Dump Clearance at Max Raise | 143 in |
| Breakout Force | 86,900 lb |
| Bucket Width | 149 in |
