Kawasaki

50ZIV-2

Wheel Loader

Operating Weight
16,380 lb
Bucket Capacity - heaped
1.80 yd³
Net Power
90.0 hp
All wheel loaders

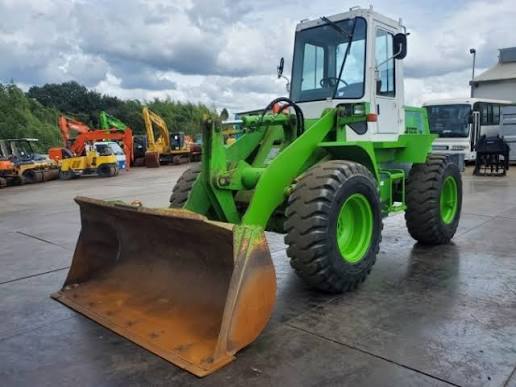

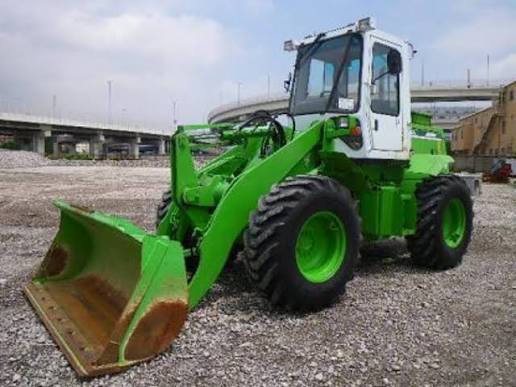

Kawasaki 50ZIV-2 Wheel Loader
1 / 5
Image 1 of 5
Image: veritread.com

Specifications

44 data points

Operating Specifications

Operating Specifications specifications
Operating Weight16,380 lb
Fuel Capacity31.8 gal
Tire Size15.5x25-10PR (L-2)
Hydraulic System Fluid Capacity19.9 gal
Static Tipping Weight13,627 lb
Operating Voltage24 V
Turning Radius202 in
Engine Oil Fluid Capacity3.0 gal
Rear Axle Oscillation24 °
Alternator Supplied Amperage50 A
Front Axle/Diff Fluid Capacity4.8 gal
Rear Axle/Diff Fluid Capacity4.8 gal
Cooling System Fluid Capacity4.8 gal
Transmission Fluid Capacity5.3 gal

Engine

Engine specifications
Engine ModelB3.9C
Displacement240 in³
Power Measured @2,350 rpm
Net Power90.0 hp
Number of Cylinders4
Aspirationnatural
Torque Measured @1,600 rpm

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity27.0 gal/min
Raise Time5.4 s
Lower Time2.8 s
Dump Time1.0 s
Relief Valve Setting3,000 psi
Pump Typegear type

Dimensions

Dimensions specifications
Ground Clearance16 in
Height - Top of Cab122 in
Wheelbase103 in
Width Over Tires88 in
Reach at Max Lift and Dump41 in
Length with Bucket on Ground243 in
Hinge Pin - Max Height134 in

Transmission

Transmission specifications
Max Speed - Forward21.1 mph
Max Speed - Reverse21.1 mph
Transmission Typefull powershift
Number of Forward Gears3
Number of Reverse Gears3

Bucket

Bucket specifications
Bucket Capacity - heaped1.80 yd³
Bucket Capacity - struck1.50 yd³
Dump Clearance at Max Raise101 in
Breakout Force13,700 lb
Bucket Width94 in
