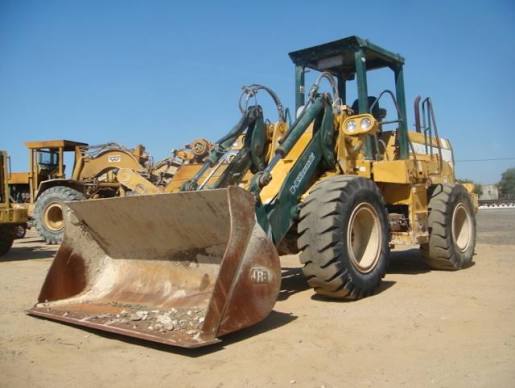

65TM-2

Specifications

50 data points

Operating Specifications specifications
Operating Weight	25,375 lb
Fuel Capacity	46.3 gal
Tire Size	20.5x25-12PR (L-2)
Hydraulic System Fluid Capacity	26.5 gal
Operating Voltage	24 V
Turning Radius	226 in
Rear Axle Oscillation	12 °
Alternator Supplied Amperage	50 A
Cooling System Fluid Capacity	11.2 gal
Transmission Fluid Capacity	8.0 gal
Engine Oil Capacity	3.8 gal
Static Tipping Load - Bucket	16,954 lb
Front Diff Fluid Capacity	5.3 gal
Rear Diff Fluid Capacity	5.3 gal
Static Tipping Load - Forks	12,875 lb
Static Tipping Load - Material Handler	8,620 lb

Dimensions specifications
Ground Clearance	18 in
Height - Top of Cab	130 in
Wheelbase	115 in
Width Over Tires	95 in
Hinge Pin - Max Height	154 in
Reach at Max Height and Dump	50 in
Length w/ Bucket on Ground	283 in
Dump Clearance at Max Lift	109 in
Max Lift Height	146 in
Fork Tine Length	48 in
Length with out Forks on Ground	301 in
Height at Hook Max Reach	81 in
