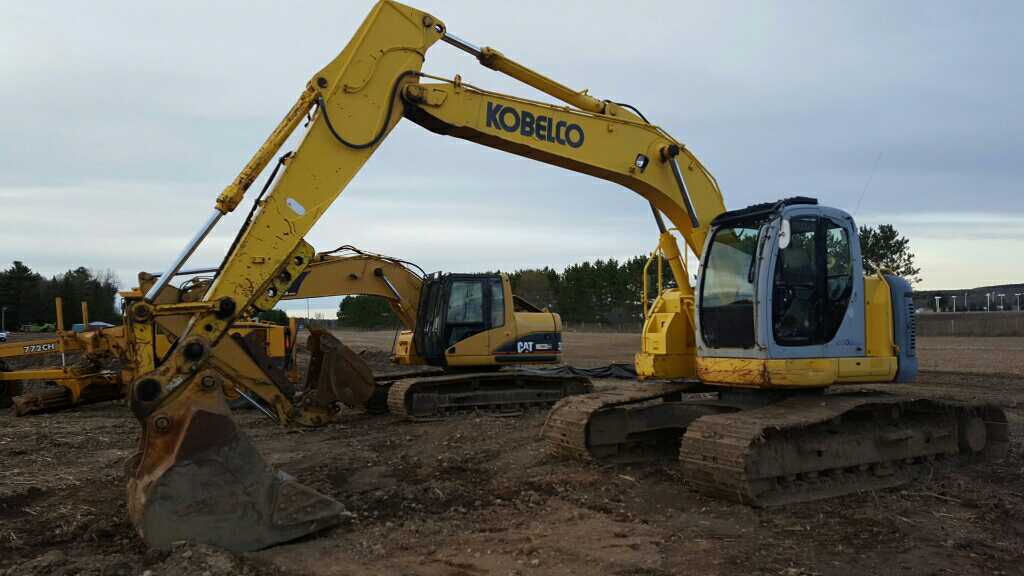

Kobelco
200SR LC
- Operating Weight
- 48,500 lb
- Max Digging Depth
- 243 in
- Max Digging Depth
- 258 in
- Net Power
- 123.0 hp
1 / 5
Image 1 of 5
Specifications
41 data points
Operating Specifications
| Operating Weight | 48,500 lb |
|---|---|
| Fuel Capacity | 71.3 gal |
| Hydraulic Pump Flow Capacity | 98.1 gal/min |
| Hydraulic System Fluid Capacity | 56.8 gal |
| Hydraulic System Relief Valve Pressure | 4,980 psi |
| Engine Oil Capacity | 3.4 gal |
| Cooling System Fluid Capacity | 4.9 gal |
| Swing Drive Fluid Capacity | 2.0 gal |
Engine
| Engine Model | AA-4BG1TC |
|---|---|
| Displacement | 264 in³ |
| Power Measured @ | 2,200 rpm |
| Net Power | 123.0 hp |
Dimensions
| Ground Clearance | 18 in |
|---|---|
| Height - Top of Cab | 121 in |
| Length of Track on Ground | 145 in |
| Tail Swing Radius | 67 in |
| Width to Outside of Tracks | 126 in |
| Removal Counterweight Clearance | 41 in |
Undercarriage
| Ground Pressure | 5 psi |
|---|---|
| Track Gauge | 95 in |
| Max Travel Speed | 3.2 mph |
| Shoe Size | 32 in |
| Drawbar Pull | 44,775 lb |
Boom/Stick Excavator Option 1
| Max Digging Depth | 243 in |
|---|---|
| Max Reach Along Ground | 347 in |
| Max Loading Height | 291 in |
| Max Vertical Wall Digging Depth | 214 in |
| Max Cutting Height | 403 in |
| Shipping Length of Unit | 324 in |
| Shipping Height of Unit | 121 in |
Bucket
| Reference Bucket Capacity | 0.99 yd³ |
|---|---|
| Maximum Bucket Capacity | 1.29 yd³ |
| Minimum Bucket Capacity | 0.90 yd³ |
Swing Mechanism
| Swing Speed | 11 rpm |
|---|
Boom/Stick Excavator Option 2
| Max Digging Depth | 258 in |
|---|---|
| Max Vertical Wall Digging Depth | 229 in |
| Max Cutting Height | 415 in |
| Max Loading Height | 302 in |
| Max Reach Along Ground | 362 in |
| Shipping Length of Unit | 323 in |
| Shipping Height of Unit | 121 in |
