Kobelco

235SR LC

Excavator

Operating Weight
57,300 lb
Max Digging Depth
264 in
Net Power
148.0 hp
All excavators

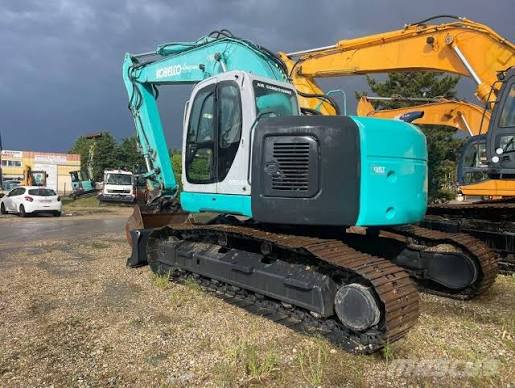

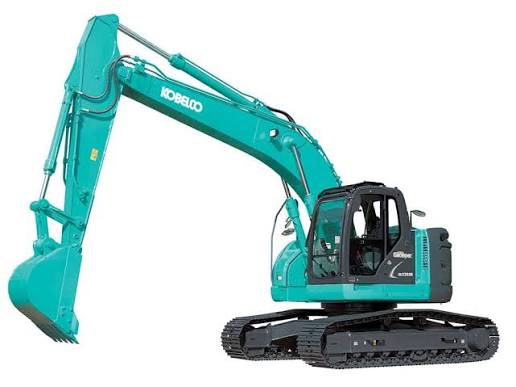

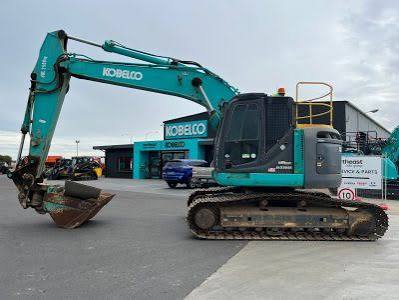

Kobelco 235SR LC Excavator
1 / 5
Image 1 of 5
Image: veritread.com

Specifications

34 data points

Operating Specifications

Operating Specifications specifications
Operating Weight57,300 lb
Fuel Capacity77.0 gal
Hydraulic Pump Flow Capacity111.0 gal/min
Hydraulic System Fluid Capacity61.0 gal
Hydraulic System Relief Valve Pressure4,980 psi
Engine Oil Capacity6.4 gal
Cooling System Fluid Capacity5.1 gal
Swing Drive Fluid Capacity2.0 gal

Engine

Engine specifications
Engine Model6D34-TLED
Displacement358 in³
Power Measured @2,000 rpm
Net Power148.0 hp

Dimensions

Dimensions specifications
Ground Clearance18 in
Height - Top of Cab122 in
Length of Track on Ground152 in
Tail Swing Radius72 in
Width to Outside of Tracks134 in
Removal Counterweight Clearance42 in

Undercarriage

Undercarriage specifications
Ground Pressure6 psi
Track Gauge102 in
Max Travel Speed3.3 mph
Shoe Size32 in
Drawbar Pull51,600 lb

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth264 in
Max Reach Along Ground380 in
Max Loading Height332 in
Max Vertical Wall Digging Depth239 in
Max Cutting Height445 in
Shipping Length of Unit350 in
Shipping Height of Unit125 in

Bucket

Bucket specifications
Reference Bucket Capacity1.10 yd³
Maximum Bucket Capacity1.70 yd³
Minimum Bucket Capacity0.71 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed11 rpm
