Kobelco

27SR-3

Mini Excavator

Operating Weight
5,976 lb
Max Digging Depth
101 in
Net Power
21.3 hp
All mini excavators

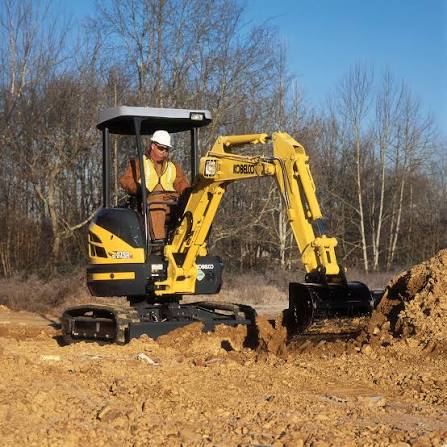

Kobelco 27SR-3 Mini Excavator
1 / 5
Image 1 of 5
Image: toolzon.com

Specifications

33 data points

Operating Specifications

Operating Specifications specifications
Operating Weight5,976 lb
Fuel Capacity7.4 gal
Hydraulic Pump Flow Capacity20.8 gal/min
Hydraulic System Fluid Capacity6.7 gal
Hydraulic System Relief Valve Pressure3,336 psi
Operating Voltage12 V
Alternator Supplied Amperage40 A

Engine

Engine specifications
Engine Model3TNV82A-SYB
Displacement81 in³
Power Measured @2,200 rpm
Net Power21.3 hp
Number of Cylinders3

Dimensions

Dimensions specifications
Ground Clearance11 in
Height - Top of Cab100 in
Length of Track on Ground64 in
Tail Swing Radius30 in
Width to Outside of Tracks60 in
Removal Counterweight Clearance22 in

Undercarriage

Undercarriage specifications
Ground Pressure4 psi
Track Gauge50 in
Max Travel Speed2.5 mph
Shoe Size10 in
Drawbar Pull6,368 lb

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth101 in
Max Reach Along Ground178 in
Max Vertical Wall Digging Depth93 in
Max Loading Height126 in
Shipping Length of Unit163 in
Max Cutting Height176 in
Shipping Height of Unit100 in

Bucket

Bucket specifications
Reference Bucket Capacity0.20 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed9 rpm
Swing Torque442 lb-ft
