Kobelco

SK200-8

Excavator

Operating Weight
44,533 lb
Max Digging Depth
264 in
Net Power
152.9 hp
All excavators

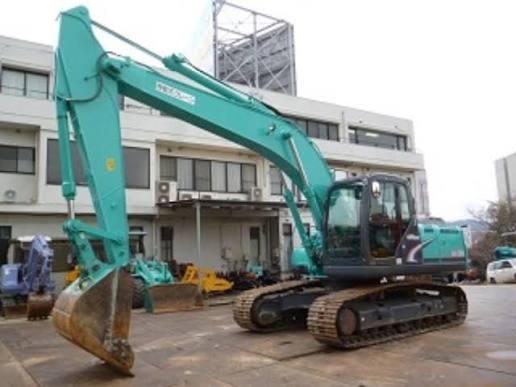

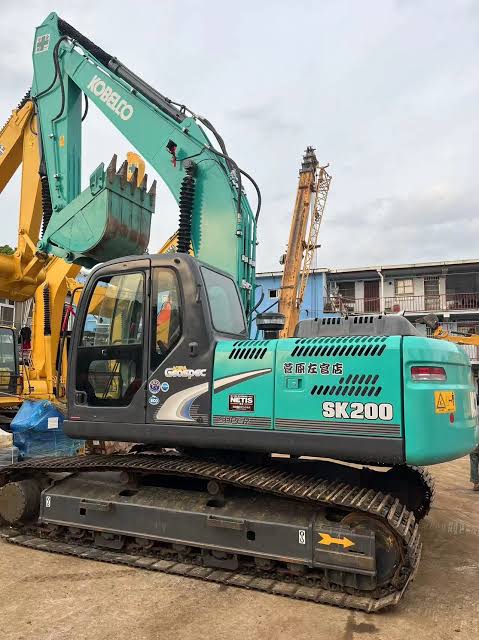

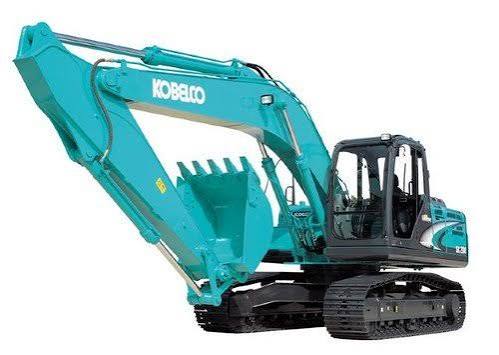

Kobelco SK200-8 Excavator
1 / 5
Image 1 of 5
Image: vm-cn.com

Specifications

20 data points

Operating Specifications

Operating Specifications specifications
Operating Weight44,533 lb
Hydraulic Pump Flow Capacity116.3 gal/min
Hydraulic System Relief Valve Pressure4,975 psi

Engine

Engine specifications
Engine ModelJ05E
Displacement311 in³
Power Measured @2,000 rpm
Net Power152.9 hp

Dimensions

Dimensions specifications
Ground Clearance18 in
Length of Track on Ground133 in
Tail Swing Radius109 in
Width to Outside of Tracks110 in

Undercarriage

Undercarriage specifications
Max Travel Speed3.8 mph
Shoe Size24 in

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth264 in
Max Reach Along Ground384 in
Max Loading Height272 in
Max Vertical Wall Digging Depth241 in
Shipping Length of Unit373 in
Shipping Height of Unit120 in

Bucket

Bucket specifications
Reference Bucket Capacity1.20 yd³
