Kobelco

SK210 LC-10

Excavator

Operating Weight
49,400 lb
Max Digging Depth
264 in
Max Digging Depth
277 in
Net Power
159.6 hp
All excavators

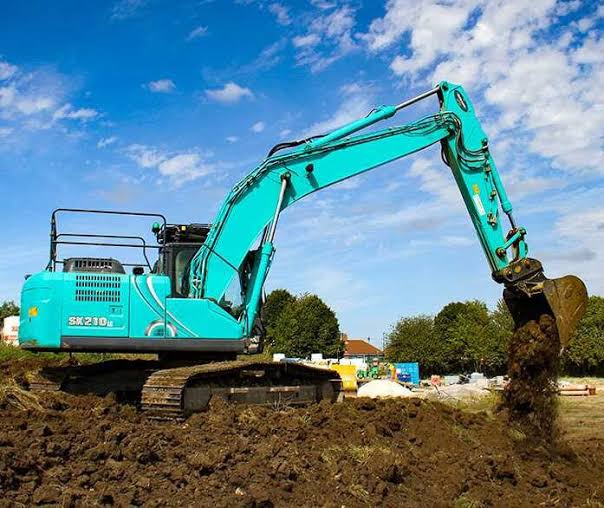

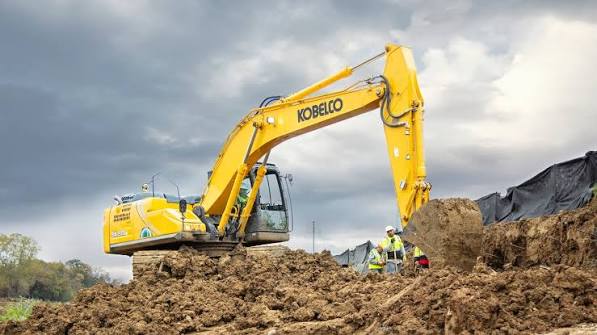

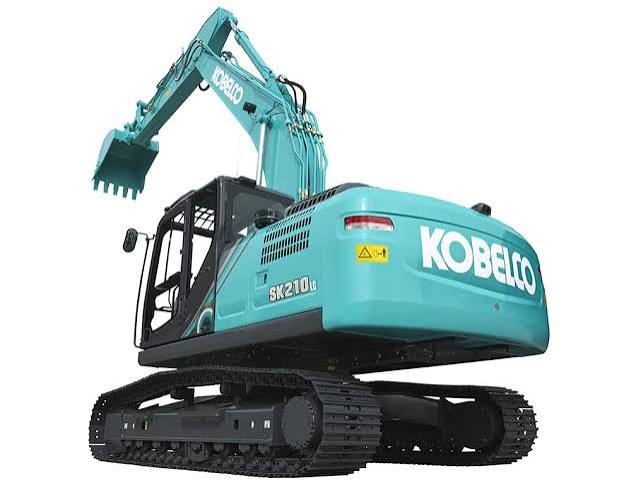

Kobelco SK210 LC-10 Excavator
1 / 5
Image 1 of 5
Image: farmersequip.com

Specifications

45 data points

Operating Specifications

Operating Specifications specifications
Operating Weight49,400 lb

Engine

Engine specifications
Engine ModelHINO J05EUM-KSSC
Displacement313 in³
Power Measured @2,000 rpm
Net Power159.6 hp
Torque Measured @1,600 rpm
Max Torque472 lb-ft
Stroke5 in
Bore5 in
Engine TypeDirect injection
Emission Tier LevelTier IV final

Weights

Weights specifications
Operating Weight47,840 lb

Hydraulic System

Hydraulic System specifications
Pump TypeTwo variable displacement pumps + One gear pump
Boom cylinder5 in
Bucket cylinder5 in

Dimensions

Dimensions specifications
Ground Clearance18 in
Overall Length378 in
Tail Swing Radius115 in
Track Gauge95 in
Overall width -Upper Structure113 in

Undercarriage

Undercarriage specifications
Max Travel Speed3.7 mph

Fluid Capacities

Fluid Capacities specifications
Fuel Tank84.6 gal
Hydraulic system64.5 gal
Engine Oil5.5 gal
Cooling system5.1 gal
Diesel exhaust fluid (DEF) tank22.0 gal

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth264 in
Max Reach Along Ground390 in
Max Vertical Wall Digging Depth240 in
Max Digging Reach391 in
Max Digging Reach on Ground374 in
Bucket Digging Force - SAE29,225 lb
Max Digging Height374 in
Bucket Digging Force - ISO32,148 lb
Max Dumping Clearance274 in
Min Dumping Clearance96 in
Arm Crowd Force - SAE22,211 lb

Swing Mechanism

Swing Mechanism specifications
Swing Speed13 rpm
Swing radius115 in

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth277 in
Max Vertical Wall Digging Depth256 in
Max Digging Reach398 in
Max Digging Reach on Ground401 in
Max Dumping Clearance265 in
Min Dumping Clearance74 in
