Kobelco

SK230SRLC-5

Excavator

Operating Weight
56,438 lb
Max Digging Depth
260 in
Net Power
166.0 hp
All excavators

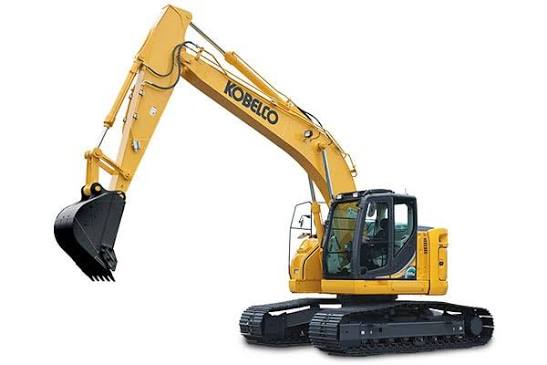

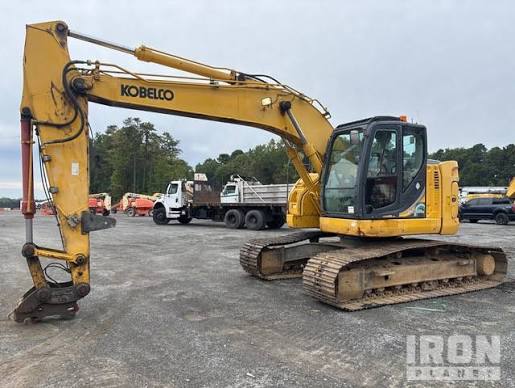

Kobelco SK230SRLC-5 Excavator
1 / 5
Image 1 of 5
Image: forconstructionpros.com

Specifications

53 data points

Operating Specifications

Operating Specifications specifications
Operating Weight56,438 lb

Engine

Engine specifications
Engine ModelJ05EUM-KSSL
Displacement313 in³
Power Measured @2,000 rpm
Net Power166.0 hp
Number of Cylinders4
Torque Measured @1,600 rpm
Max Torque472 lb-ft
Engine MakeHino JO5E
Stroke5 in
Bore5 in

Hydraulic System

Hydraulic System specifications
Hydraulic System TypeTwo variable displacement pumps
Travel Circuit4,970 psi
Max. discharge flow5.3 gal/min

Dimensions

Dimensions specifications
Ground Clearance18 in
Height - Top of Cab125 in
Overall Length348 in
Tail Swing Radius73 in
Shoe width31 in
Crawler length175 in

Undercarriage

Undercarriage specifications
Track Gauge95 in
Number of Shoes per Side49
Drawbar Pull44,063 lb

Brakes & Steering

Brakes & Steering specifications
Parking brakeOil disc brake per motor
Gradeability—
Travel speed3.6 mph

Fluid Capacities

Fluid Capacities specifications
Fuel Tank87.2 gal
Hydraulic system60.8 gal
Engine Oil5.5 gal
Cooling system6.4 gal
Hydraulic oil tank30.2 gal
Travel reduction2.7 gal

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth260 in
Max Reach Along Ground381 in
Max Vertical Wall Digging Depth235 in
Minimum swing radius93,307 in
Max Digging Reach373 in
Bucket Digging Force - SAE26,800 lb
Max Digging Height419 in
Bucket Digging Force - ISO29,700 lb
Max Dumping Clearance305 in
Min Dumping Clearance119 in
Arm Crowd Force - SAE21,200 lb
Arm Crowd Force-ISO21,800 lb
Maximum Reach at Ground Level376 in

Swing Mechanism

Swing Mechanism specifications
Swing Speed13 rpm
Swing Torque52,699 lb-ft

Cylinders

Cylinders specifications
Bore (Boom)5 in
Bore (Bucket)4 in
Stroke (Bucket)42 in
Bore (Arm)5 in
Stroke (Arm)55 in
Stroke (Boom)53 in
