Kobelco

SK235SR-2

Excavator

Operating Weight
53,131 lb
Max Digging Depth
263 in
Net Power
152.9 hp
All excavators

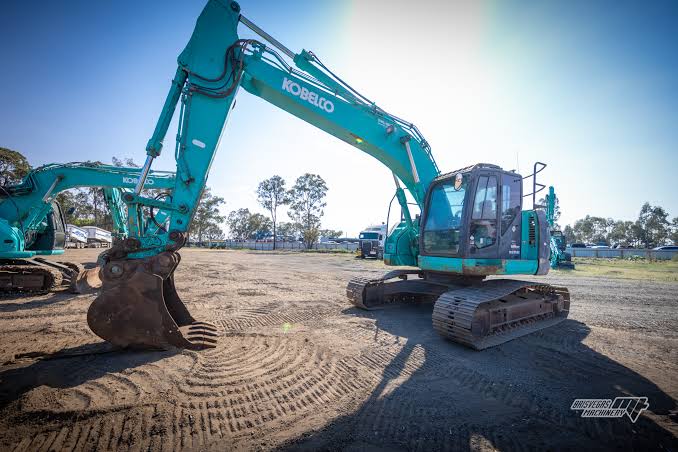

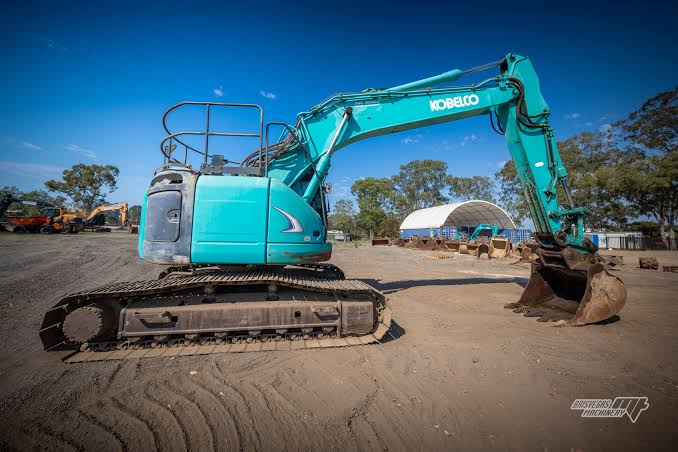

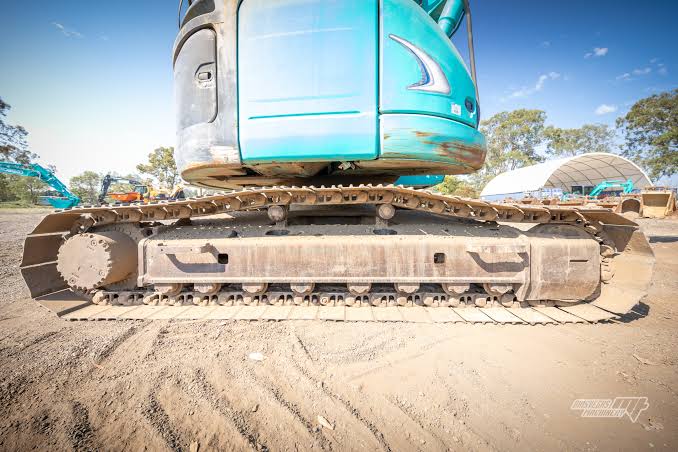

Kobelco SK235SR-2 Excavator
1 / 5
Image 1 of 5
Image: machinerytrader.com

Specifications

20 data points

Operating Specifications

Operating Specifications specifications
Operating Weight53,131 lb
Hydraulic Pump Flow Capacity116.3 gal/min
Hydraulic System Relief Valve Pressure4,975 psi

Engine

Engine specifications
Engine ModelJO5E
Displacement311 in³
Power Measured @2,000 rpm
Net Power152.9 hp

Dimensions

Dimensions specifications
Ground Clearance18 in
Length of Track on Ground137 in
Tail Swing Radius69 in
Width to Outside of Tracks119 in

Undercarriage

Undercarriage specifications
Max Travel Speed3.5 mph
Shoe Size24 in

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth263 in
Max Reach Along Ground381 in
Max Loading Height329 in
Max Vertical Wall Digging Depth239 in
Shipping Length of Unit347 in
Shipping Height of Unit125 in

Bucket

Bucket specifications
Reference Bucket Capacity1.20 yd³
