Kobelco

SK260LC-10 LONG REACH

Excavator

Operating Weight
61,950 lb
Max Digging Depth
581 in
Net Power
178.0 hp
All excavators

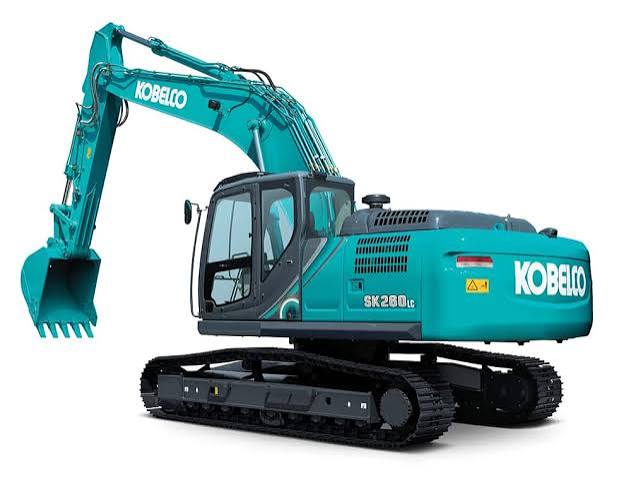

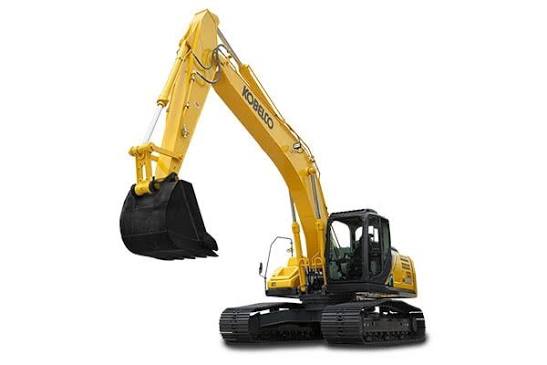

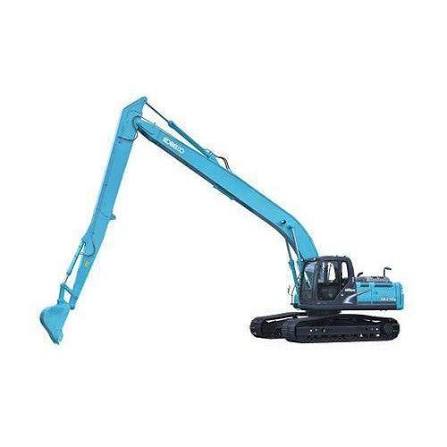

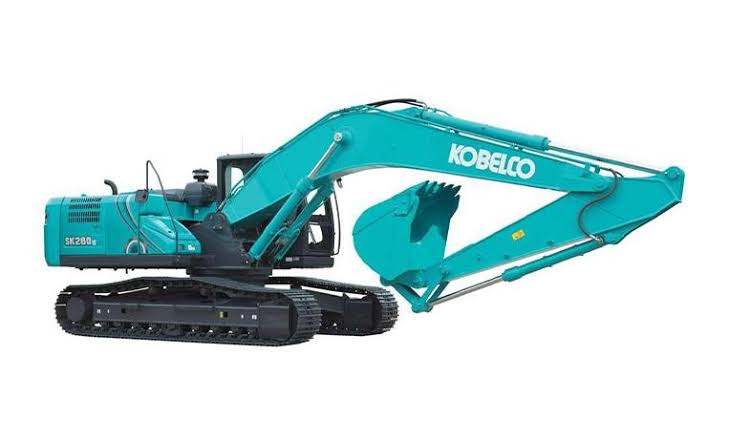

Kobelco SK260LC-10 LONG REACH Excavator
1 / 5
Image 1 of 5
Image: kobelco-sea.com

Specifications

16 data points

Operating Specifications

Operating Specifications specifications
Operating Weight61,950 lb
Fuel Capacity106.5 gal

Engine

Engine specifications
Engine ModelSK260LC
Displacement313 in³
Net Power178.0 hp

Dimensions

Dimensions specifications
Overall Height125 in

Undercarriage

Undercarriage specifications
Ground Pressure6 psi

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth581 in
Max Reach Along Ground727 in
Max Vertical Wall Digging Depth502 in
Minimum swing radius18 in
Max Digging Reach721 in
Max Digging Height575 in
Max Dumping Clearance486 in
Min Dumping Clearance62 in

Boom/Stick Excavator Option 3

Boom/Stick Excavator Option 3 specifications
Overall height125 in
