Kobelco

SK260LC-8

Excavator

Operating Weight
55,557 lb
Max Digging Depth
276 in
Net Power
175.7 hp
All excavators

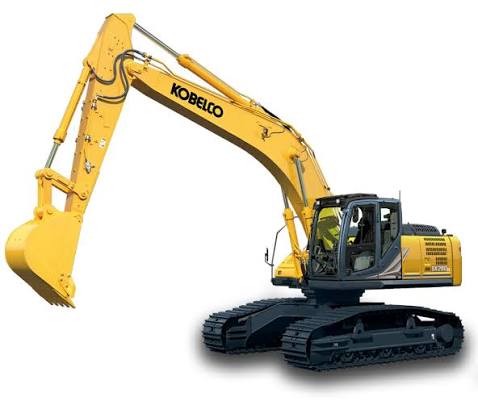

Kobelco SK260LC-8 Excavator
1 / 5
Image 1 of 5
Image: alibaba.com

Specifications

20 data points

Operating Specifications

Operating Specifications specifications
Operating Weight55,557 lb
Hydraulic Pump Flow Capacity130.0 gal/min
Hydraulic System Relief Valve Pressure4,975 psi

Engine

Engine specifications
Engine ModelJ05E
Displacement311 in³
Power Measured @2,000 rpm
Net Power175.7 hp

Dimensions

Dimensions specifications
Ground Clearance19 in
Length of Track on Ground152 in
Tail Swing Radius120 in
Width to Outside of Tracks130 in

Undercarriage

Undercarriage specifications
Max Travel Speed3.7 mph
Shoe Size24 in

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth276 in
Max Reach Along Ground400 in
Max Loading Height271 in
Max Vertical Wall Digging Depth243 in
Shipping Length of Unit400 in
Shipping Height of Unit126 in

Bucket

Bucket specifications
Reference Bucket Capacity1.60 yd³
