Kobelco

SK40SR-5

Mini Excavator

Operating Weight
9,259 lb
Max Digging Depth
134 in
Net Power
39.3 hp
All mini excavators

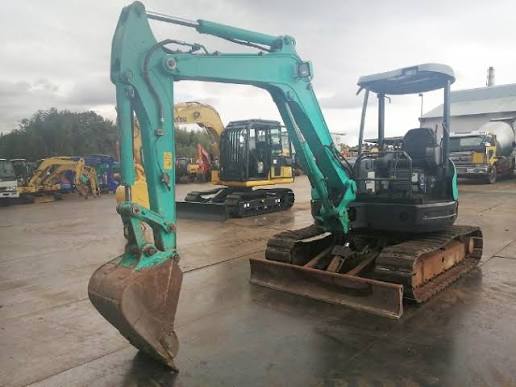

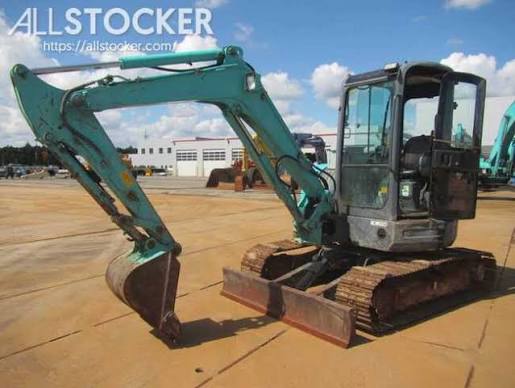

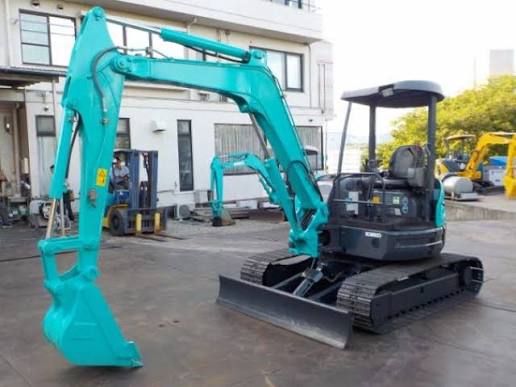

Kobelco SK40SR-5 Mini Excavator
1 / 5
Image 1 of 5
Image: truck1.eu

Specifications

21 data points

Operating Specifications

Operating Specifications specifications
Operating Weight9,259 lb
Hydraulic Pump Flow Capacity34.4 gal/min
Hydraulic System Relief Valve Pressure3,336 psi

Engine

Engine specifications
Engine Model4TNV88
Displacement133 in³
Power Measured @2,400 rpm
Net Power39.3 hp
Number of Cylinders4

Dimensions

Dimensions specifications
Ground Clearance15 in
Length of Track on Ground72 in
Tail Swing Radius40 in
Width to Outside of Tracks78 in

Undercarriage

Undercarriage specifications
Max Travel Speed2.9 mph
Shoe Size16 in

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth134 in
Max Reach Along Ground217 in
Max Vertical Wall Digging Depth104 in
Max Loading Height143 in
Shipping Length of Unit198 in
Shipping Height of Unit103 in

Bucket

Bucket specifications
Reference Bucket Capacity0.20 yd³
