Komatsu
Liebherr
RL64
Crawler Dozer
50 specifications

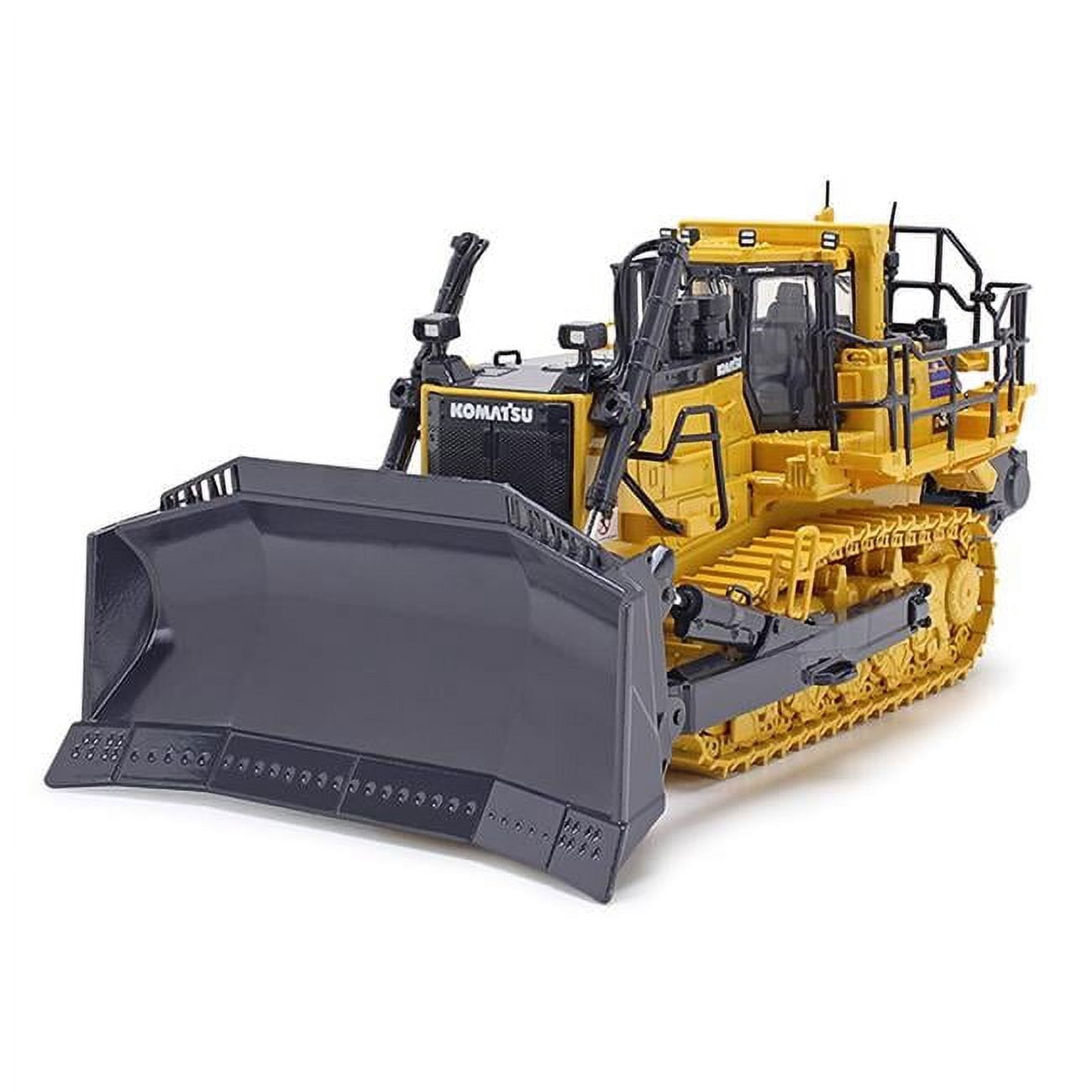

Komatsu
D375A-5
- Operating Weight
- 153,350 lb
- Max Speed - Forward
- 7.3 mph
- Gross Power
- 605.0 hp
- Net Power
- 525.0 hp
1 / 5
Image 1 of 5
Specifications
32 data points
Operating Specifications
| Operating Weight | 153,350 lb |
|---|---|
| Fuel Capacity | 277.0 gal |
| Cooling System Fluid Capacity | 31.7 gal |
| Final Drives Fluid Capacity | 17.1 gal |
| Engine Oil Capacity | 22.7 gal |
| Hydraulic Fluid Capacity | 36.5 gal |
Engine
| Engine Model | SA6D170E-3 |
|---|---|
| Displacement | 1,413 in³ |
| Power Measured @ | 1,800 rpm |
| Gross Power | 605.0 hp |
| Net Power | 525.0 hp |
| Number of Cylinders | 6 |
| Aspiration | turbocharged air-to-air aftercooled cooled EGR |
| Make | Komatsu |
Hydraulic System
| Pump Flow Capacity | 107.0 gal/min |
|---|---|
| Relief Valve Pressure | 2,990 psi |
Dimensions
| Ground Clearance | 24 in |
|---|---|
| Height - Top of Cab | 169 in |
| Width Over Tracks | 98 in |
| Length w/ Blade | 410 in |
Transmission
| Max Speed - Forward | 7.3 mph |
|---|---|
| Max Speed - Reverse | 9.8 mph |
| Transmission Type | Komatsu TORQFLOW transmission |
| Number of Forward Gears | 3 |
| Number of Reverse Gears | 3 |
Undercarriage
| Ground Pressure | 20 psi |
|---|---|
| Number of Track Rollers per Side | 8 |
| Number of Shoes per Side | 41 |
| Standard Shoe Size | 24 in |
| Ground Contact Area | 7,527 in³ |
Standard Blade
| Width | 186 in |
|---|---|
| Height | 8 in |
