Komatsu

D375A-6

Crawler Dozer

Operating Weight
157,940 lb
Net Power
610.0 hp
All crawler dozers

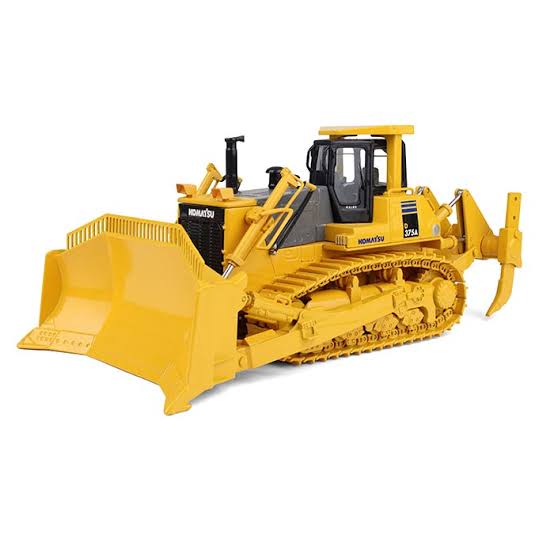

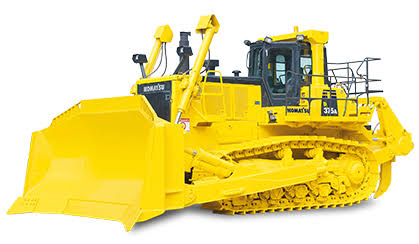

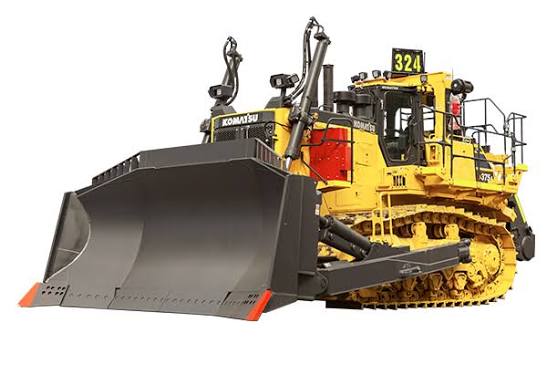

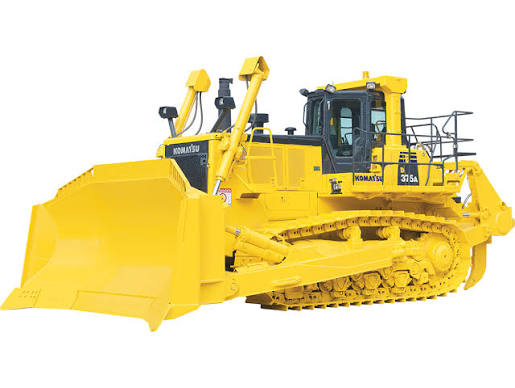

Komatsu D375A-6 Crawler Dozer
1 / 5
Image 1 of 5
Image: heavyequipmentguide.ca

Specifications

24 data points

Operating Specifications

Operating Specifications specifications
Operating Weight157,940 lb

Engine

Engine specifications
Engine ModelSAA6D170E-5
Displacement1,413 in³
Power Measured @1,800 rpm
Net Power610.0 hp
Number of Cylinders6
AspirationTurbochanged
MakeKomatsu
Bore7 in
Stroke7 in

Weights

Weights specifications
Ripper weight14,992 lb

Dimensions

Dimensions specifications
Ground Clearance25 in
Height - Top of Cab169 in
Length of Track on Ground157 in
Track Gauge100 in

Transmission

Transmission specifications
Transmission TypeTorqflow

Undercarriage

Undercarriage specifications
Ground Pressure16 psi
Number of Track Rollers per Side8
Number of Shoes per Side41
Number of Carrier Rollers per Side2
Ground Contact Area7,527 in³

General Specifications

General Specifications specifications
Weight lbs (kg)157,940 (71,640) — Starting 2016 Model Year
Engine typeKomatsu SA6D170E-5 — Starting 2016 Model Year
Engine Power hp ()610 (455 kW) — Starting 2016 Model Year
