D5H LGP
Crawler Dozer
38 specifications
1 / 5

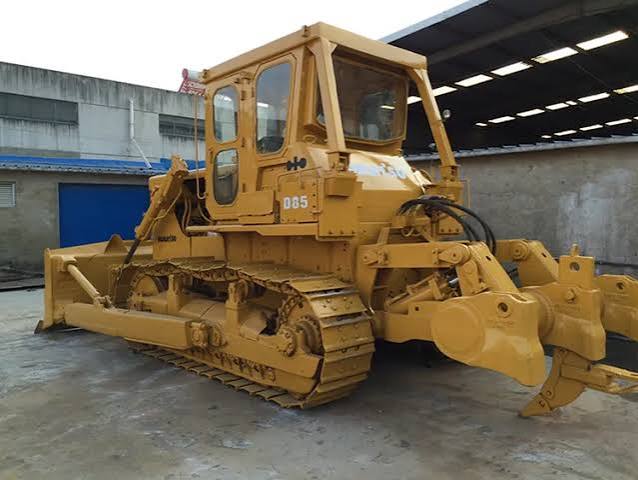

Image 1 of 5
Specifications
45 data points
Operating Specifications
| Operating Weight | 53,881 lb |
|---|---|
| Max Speed | 7.4 mph |
| Fuel Capacity | 126.9 gal |
| Cooling System Fluid Capacity | 20.9 gal |
| Final Drives Fluid Capacity | 10.9 gal |
| Engine Oil Capacity | 7.2 gal |
| Hydraulic Fluid Capacity | 26.7 gal |
| Operating Voltage | 24 V |
Engine
| Engine Model | S6D125E |
|---|---|
| Displacement | 674 in³ |
| Power Measured @ | 2,000 rpm |
| Gross Power | 228.0 hp |
| Number of Cylinders | 6 |
| Aspiration | Turbocharged |
| Torque Measured @ | 1,400 rpm |
| Max Torque | 737 lb-ft |
Hydraulic System
| Pump Flow Capacity | 51.3 gal/min |
|---|---|
| Relief Valve Pressure | 2,774 psi |
| Pump Type | Gear -type pump |
Dimensions
| Ground Clearance | 17 in |
|---|---|
| Height - Top of Cab | 100 in |
| Length of Track on Ground | 113 in |
| Width to Outside of Tracks | 103 in |
| Length with Bucket on Ground | 175 in |
| Width Over Tracks | 103 in |
| Length w/ Blade | 270 in |
| Length w/o Blade | 187 in |
Transmission
| Max Speed - Forward | 3.8 mph |
|---|---|
| Max Speed - Reverse | 4.9 mph |
| Transmission Type | TF |
| Number of Forward Gears | 3 |
| Number of Reverse Gears | 3 |
Undercarriage
| Ground Pressure | 8 psi |
|---|---|
| Track Gauge | 79 in |
| Number of Track Rollers per Side | 7 |
| Number of Shoes per Side | 39 |
| Number of Carrier Rollers per Side | 2 |
| Standard Shoe Size | 22 in |
| Ground Contact Area | 4,931 in³ |
| Track Pitch | 9 in |
| Length of Track on Ground | 113 in |
| Track Shoe Width | 22 in |
Standard Blade
| Width | 148 in |
|---|---|
| Height | 55 in |
| Capacity | 6.91 yd³ |
