Komatsu

D85E-18

Crawler Dozer

Operating Weight
42,560 lb
Max Speed - Forward
7.0 mph
Gross Power
220.0 hp
All crawler dozers

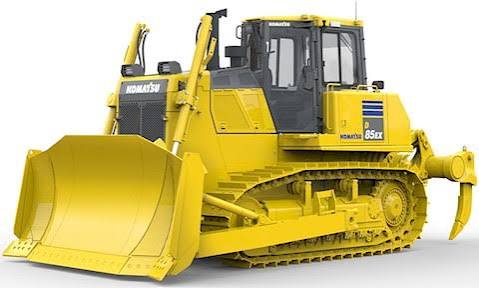

Komatsu D85E-18 Crawler Dozer
1 / 5
Image 1 of 5
Image: komatsu.com

Specifications

25 data points

Operating Specifications

Operating Specifications specifications
Operating Weight42,560 lb
Fuel Capacity118.9 gal
Cooling System Fluid Capacity20.9 gal

Engine

Engine specifications
Engine ModelNT-855
Displacement855 in³
Gross Power220.0 hp
Aspirationturbocharged
Max Torque759 lb-ft

Dimensions

Dimensions specifications
Ground Clearance17 in
Height - Top of Cab134 in
Length of Track on Ground108 in
Width Over Tracks103 in
Length w/o Blade173 in

Transmission

Transmission specifications
Max Speed - Forward7.0 mph
Max Speed - Reverse8.3 mph
Transmission Typeplanetary gear
Number of Forward Gears3
Number of Reverse Gears3

Undercarriage

Undercarriage specifications
Ground Pressure8 psi
Track Gauge79 in
Number of Track Rollers per Side7
Standard Shoe Size22 in

Standard Blade

Standard Blade specifications
Width148 in
Height52 in
Capacity8.50 yd³
