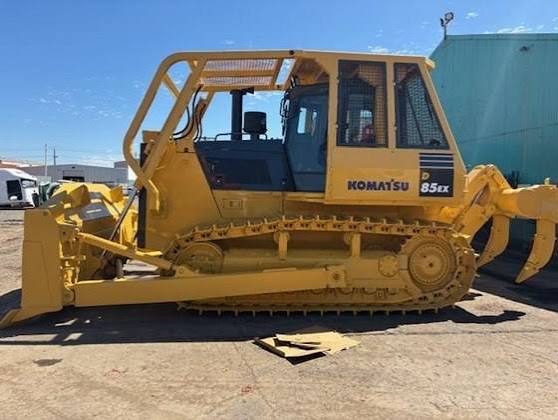

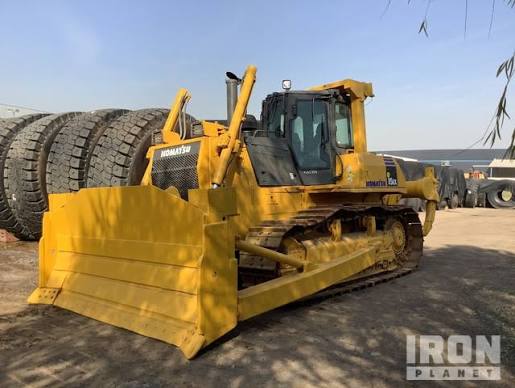

Komatsu
D85EX-15EO
- Operating Weight
- 46,780 lb
- Max Speed - Forward
- 6.2 mph
- Gross Power
- 266.0 hp
- Net Power
- 264.0 hp
1 / 5
Image 1 of 5
Specifications
36 data points
Operating Specifications
| Operating Weight | 46,780 lb |
|---|---|
| Fuel Capacity | 129.0 gal |
| Cooling System Fluid Capacity | 15.3 gal |
| Final Drives Fluid Capacity | 6.9 gal |
| Engine Oil Capacity | 10.0 gal |
| Hydraulic Fluid Capacity | 15.9 gal |
Engine
| Engine Model | SAA6D125E-5 |
|---|---|
| Displacement | 11 in³ |
| Power Measured @ | 1,900 rpm |
| Gross Power | 266.0 hp |
| Net Power | 264.0 hp |
| Number of Cylinders | 6 |
| Aspiration | Turbo charged |
| Max Torque | 240 lb-ft |
Hydraulic System
| Pump Flow Capacity | 51.5 gal/min |
|---|---|
| Relief Valve Pressure | 3,270 psi |
| Pump Type | Plunger type |
Dimensions
| Height - Top of Cab | 59 in |
|---|---|
| Width Over Tracks | 31 in |
| Length w/ Blade | 23 in |
| Length w/o Blade | 48 in |
Transmission
| Max Speed - Forward | 6.2 mph |
|---|---|
| Max Speed - Reverse | 6.2 mph |
| Transmission Type | TORQFLOW |
| Number of Forward Gears | 3 |
| Number of Reverse Gears | 3 |
Undercarriage
| Ground Pressure | 11 psi |
|---|---|
| Track Gauge | 80 in |
| Number of Track Rollers per Side | 7 |
| Number of Shoes per Side | 41 |
| Standard Shoe Size | 22 in |
| Ground Contact Area | 5,295 in³ |
| Track Pitch | 10 in |
Standard Blade
| Width | 223 in |
|---|---|
| Height | 1,436 in |
| Capacity | 6.80 yd³ |
