Komatsu

GD530AW-2C

Motor Grader

Max Power
143.5 hp
Net Power Gear 5-6
143.5 hp
All motor graders

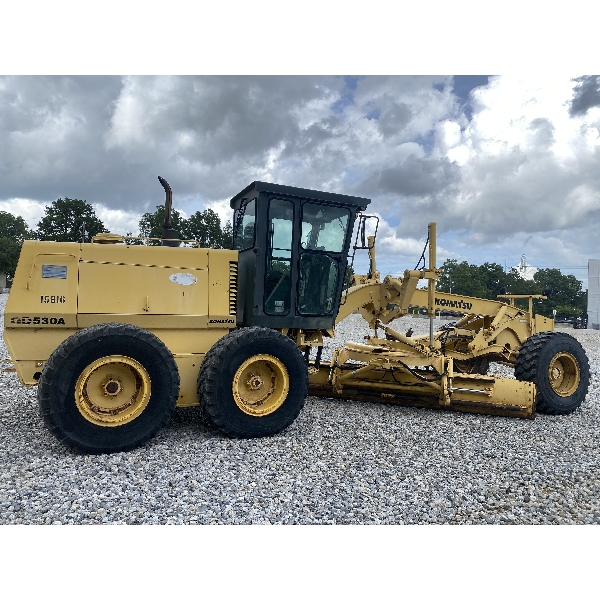

Komatsu GD530AW-2C Motor Grader
1 / 5
Image 1 of 5
Image: jmwood.com

Specifications

23 data points

Operating Specifications

Operating Specifications specifications
Std Operation Weight - Total30,556 lb
Tire Size13.00-24-10PR
Fuel Capacity89.9 gal

Engine

Engine specifications
Engine ModelS6D102
Displacement359 in³
Power Measured @2,500 rpm
Number of Cylinders6
Max Power143.5 hp
Net Power Gear 5-6143.5 hp

Dimensions

Dimensions specifications
Wheelbase234 in
Overall Length332 in
Width Over Tires96 in
Height to Top of Isomount Cab122 in
Blade Base98 in
Tandem Axle Wheelbase61 in
Rear Ground Clearance12 in

Transmission

Transmission specifications
Max Speed - Forward25.5 mph
Max Speed - Reverse13.7 mph
Number of Gears - Forward6

Moldboard

Moldboard specifications
Moldboard Height26 in
Moldboard Width145 in

Front Axle

Front Axle specifications
Ground Clearance12 in

Steering System

Steering System specifications
Articulation Angle20 °
