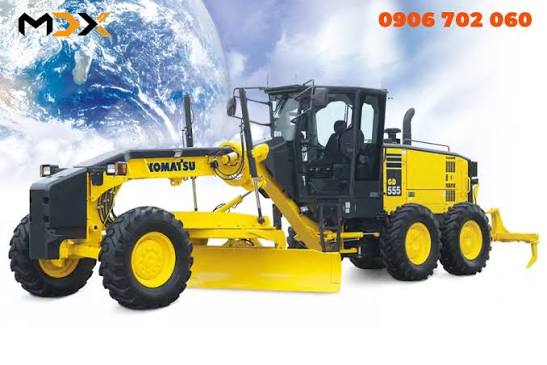

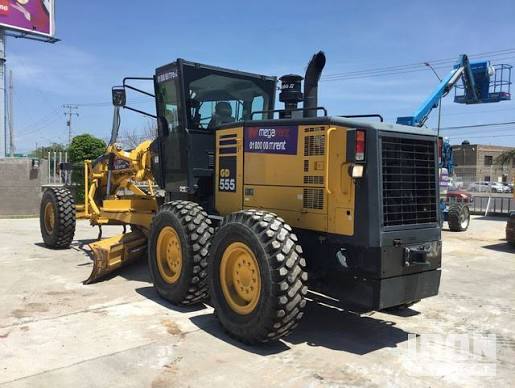

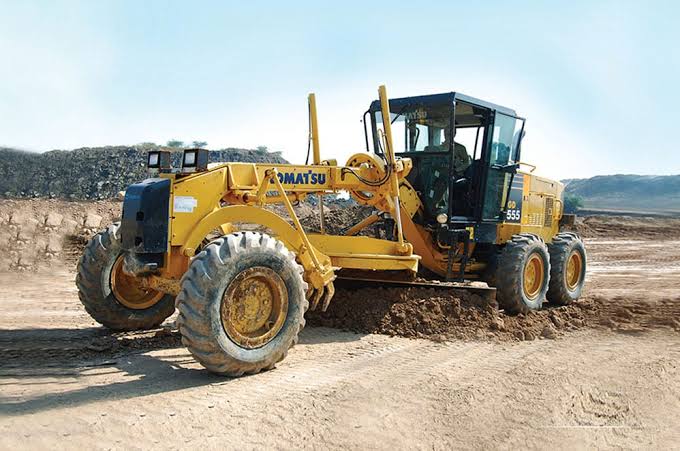

Komatsu GD555-5 Motor Grader
1 / 5
Image 1 of 5
Image: komatsu.com

Specifications

31 data points

Engine

Engine specifications
Engine ModelKOMATSU SAA6D107E-1
Net Power193.2 hp
Number of Cylinders6
AspirationTurbocharged and air to air aftercooled
Bore4 in
Stroke5 in
Engine TypeWater-cooled 4 cycle direct injection
Piston displacement408 in³

Weights

Weights specifications
Operating Weight - On front wheels11,993 lb
Operating Weight - On rear wheels27,955 lb
Total Operating Weight39,948 lb

Dimensions

Dimensions specifications
Overall Length408 in
Wheel base to center of tandem247 in
Minimum turning radius288 in

Fluid Capacities

Fluid Capacities specifications
Cooling system6.6 gal
Transmission11.9 gal
Final Drive4.5 gal
Fuel Tank - diesel109.9 gal
Tandem Housing15.1 gal

Moldboard

Moldboard specifications
Moldboard Height25 in
Moldboard Width146 in
Moldboard Thickness1 in

Blades

Blades specifications
Maximum Lift Above Ground19 in
Maximum shoulder reach outside rear tyres (frame straight): Left79 in
Maximum shoulder reach outside rear tyres (frame straight): Right79 in

Circle

Circle specifications
Diameter60 in

Front Axle

Front Axle specifications
Wheel Lean20 °
Oscillation - Total32 °
Ground Clearance25 in

Frame

Frame specifications
Front Frame Structure - Height12 in
Front Frame Structure - Width12 in
