Komatsu
Terex
TA27
Off-Highway Truck
46 specifications
1 / 5

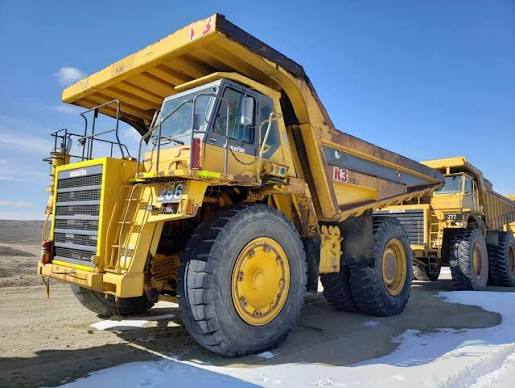

Image 1 of 5
Specifications
30 data points
Operating Specifications
| Fuel Capacity | 330.0 gal |
|---|---|
| Engine Oil Capacity | 37.0 gal |
| Cooling System Fluid Capacity | 60.0 gal |
| Alternator Supplied Amperage | — |
Engine
| Engine Model | SAA12V140ZE-2 |
|---|---|
| Displacement | 1,861 in³ |
| Gross Power | 1,042.0 hp |
| Number of Cylinders | 12 |
Weights
| Empty Weight | 155,403 lb |
|---|---|
| Loaded Weight | 367,000 lb |
| Weight Distribution Front - loaded | 33.0 % |
| Weight Distribution Rear - loaded | 67.0 % |
| Weight Distribution Front - empty | 48.0 % |
| Weight Distribution Rear - empty | 52.0 % |
Dimensions
| Ground Clearance | 31 in |
|---|---|
| Overall Length | 419 in |
| Overall Width | 223 in |
| Overall Height | 207 in |
| Dump Height | 402 in |
| Dump Ground Clearance | 31 in |
Transmission
| Max Speed | 40.2 mph |
|---|---|
| Transmission Type | Komatsu 7-speed electronically-controlled automatic powershift transmission |
| Number of Gears - Forward | 7 |
| Number of Gears - Reverse | 1 |
Service Refill Capacities
| Brake/Hoist Hydraulic Tank | 171,941.9 gal |
|---|
Dump
| Rated Payload | 171,961 lb |
|---|---|
| Raise Time | 12.0 s |
| Lower Time | 13.0 s |
| Load Capacity - heaped | 78.70 yd³ |
| Load Capacity - Struck | 50.50 yd³ |
