Komatsu
Doosan
DA40

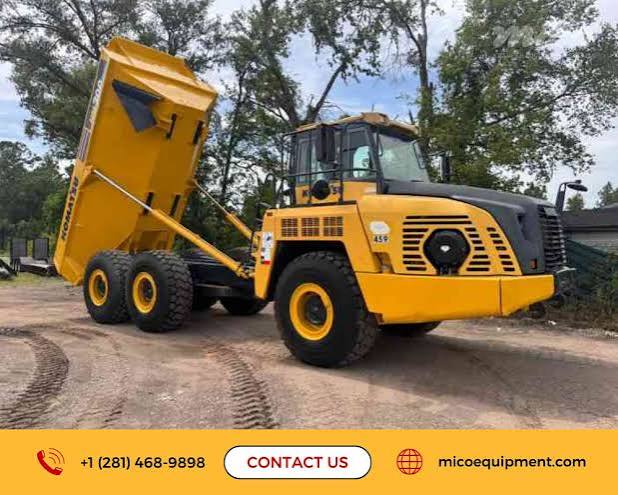

Off-Highway Truck
5 specifications
1 / 5
Image 1 of 5
Specifications
37 data points
Operating Specifications
| Fuel Capacity | 102.6 gal |
|---|---|
| Tire Size | 23.5 R25 |
| Engine Oil Capacity | 9.2 gal |
| Cooling System Fluid Capacity | 25.9 gal |
| Hydraulic System Fluid Capacity | 27.2 gal |
| Transmission Fluid Capacity | 25.9 gal |
Engine
| Engine Model | Komatsu SAA6D125E-6 |
|---|---|
| Displacement | 11 in³ |
| Power Measured @ | 2,000 rpm |
| Gross Power | 332.0 hp |
| Net Power | 324.0 hp |
| Number of Cylinders | 6 |
| Aspiration | Komatsu Variable turbo charge |
| Max Torque | 1,239 lb-ft |
| Make | Komatsu |
Weights
| Operating Weight | 116,823 lb |
|---|---|
| Total Empty | 54,917 lb |
| Total Loaded | 116,823 lb |
Dimensions
| Ground Clearance | 115 in |
|---|---|
| Wheelbase | 91 in |
| Overall Length | 406 in |
| Overall Width | 139 in |
| Overall Height | 257 in |
| Dump Height | 111 in |
| Dump Ground Clearance | 69 in |
Transmission
| Max Speed | 36.4 mph |
|---|---|
| Transmission Type | Auto |
| Number of Forward Gears | 6 |
| Number of Reverse Gears | 2 |
Drive System
| Drive Config | 6WD |
|---|
Articulating/Rigid
| Articulating/Rigid | Articulated |
|---|
Dump
| Rated Payload | 68,123 lb |
|---|---|
| Dump Angle | 45 ° |
| Raise Time | 10.5 s |
| Lower Time | 10.5 s |
| Capacity - Heaped | 22.41 yd³ |
| Capacity - Struck | 17.50 yd³ |
