Komatsu
Terex

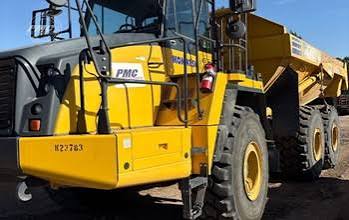

TA27
Off-Highway Truck
46 specifications
1 / 5
Image 1 of 5
Specifications
38 data points
Operating Specifications
| Fuel Capacity | 130.8 gal |
|---|---|
| Tire Size | 29.5R25 |
| Engine Oil Capacity | 13.2 gal |
| Hydraulic System Fluid Capacity | 47.6 gal |
Engine
| Engine Model | SAA6D140E-5 |
|---|---|
| Displacement | 928 in³ |
| Power Measured @ | 2,100 rpm |
| Gross Power | 453.0 hp |
| Net Power | 438.0 hp |
| Number of Cylinders | 6 |
| Aspiration | Turbocharged |
| Make | Komatsu |
Weights
| Operating Weight | 152,200 lb |
|---|---|
| Total Empty | 71,560 lb |
| Front Axle - empty | 39,430 lb |
| Total Loaded | 152,200 lb |
| Rear Axle - empty | 15,815 lb |
| Front Axle - loaded | 44,138 lb |
| Rear Axle - loaded | 53,727 lb |
| Center Axle - empty | 16,316 lb |
| Center Axle - loaded | 54,335 lb |
Dimensions
| Ground Clearance | 24 in |
|---|---|
| Wheelbase | 210 in |
| Overall Length | 445 in |
| Overall Width | 137 in |
| Overall Height | 146 in |
| Dump Height | 282 in |
| Dump Ground Clearance | 29 in |
Transmission
| Max Speed | 36.4 mph |
|---|---|
| Transmission Type | full automatic countershaft type |
| Number of Forward Gears | 6 |
| Number of Reverse Gears | 2 |
Articulating/Rigid
| Articulating/Rigid | Articulated |
|---|
Dump
| Rated Payload | 80,634 lb |
|---|---|
| Dump Angle | 70 ° |
| Raise Time | 12.0 s |
| Capacity - Heaped | 29.19 yd³ |
| Capacity - Struck | 21.59 yd³ |
