Komatsu
Terex
TA27

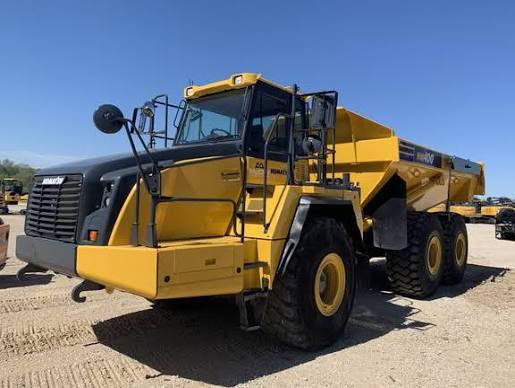

Off-Highway Truck
46 specifications
1 / 5
Image 1 of 5
Specifications
38 data points
Operating Specifications
| Fuel Capacity | 517.9 gal |
|---|---|
| Tire Size | 29.5R25 |
Engine
| Engine Model | Komatsu SAA6D140E-5 |
|---|---|
| Displacement | 15 in³ |
| Power Measured @ | 2,000 rpm |
| Gross Power | 453.0 hp |
| Net Power | 448.0 hp |
| Number of Cylinders | 6 |
| Aspiration | Turbo-charged after-cooled cooled EGR |
| Make | Komatsu |
| Bore | 6 in |
| Stroke | 7 in |
Weights
| Operating Weight | 162,569 lb |
|---|---|
| Total Empty | 43 lb |
| Total Loaded | 71 lb |
| Rear Axle - empty | 20 lb |
| Front Axle - loaded | 29 lb |
| Rear Axle - loaded | 35 lb |
| Center Axle - empty | 23 lb |
| Center Axle - loaded | 35 lb |
| Gross Weight | 163,418 lb |
Dimensions
| Ground Clearance | 29 in |
|---|---|
| Wheelbase | 118 in |
| Overall Length | 438 in |
| Overall Width | 137 in |
| Overall Height | 148 in |
| Dump Ground Clearance | 347 in |
Transmission
| Max Speed | 58.5 mph |
|---|---|
| Transmission Type | Auto |
| Number of Forward Gears | 6 |
| Number of Reverse Gears | 2 |
Drive System
| Drive Config | 6WD |
|---|
Articulating/Rigid
| Articulating/Rigid | Articulated |
|---|
Dump
| Rated Payload | 88,185 lb |
|---|---|
| Capacity - Heaped | 24.00 yd³ |
| Capacity - Struck | 18.19 yd³ |
Electrical System
| Alternator | — |
|---|---|
| Starter motor | — |
