Komatsu

PC150LC-6

Excavator

Operating Weight
39,463 lb
Max Digging Depth
205 in
Max Digging Depth
222 in
Net Power
104.6 hp
All excavators

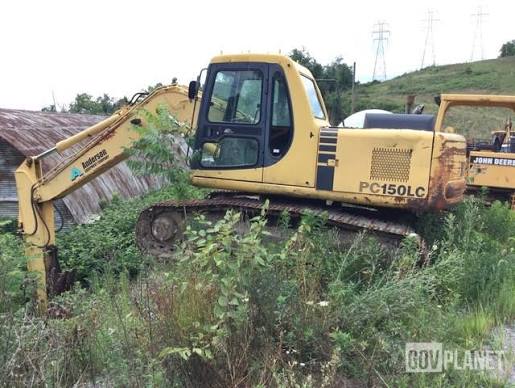

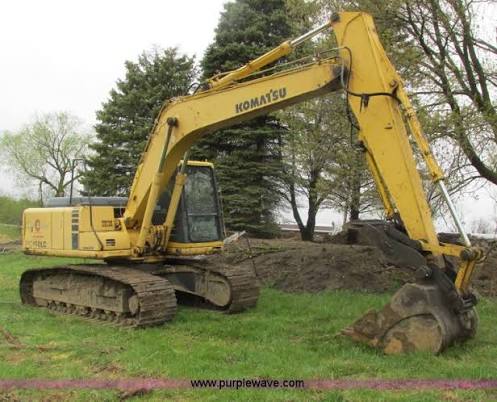

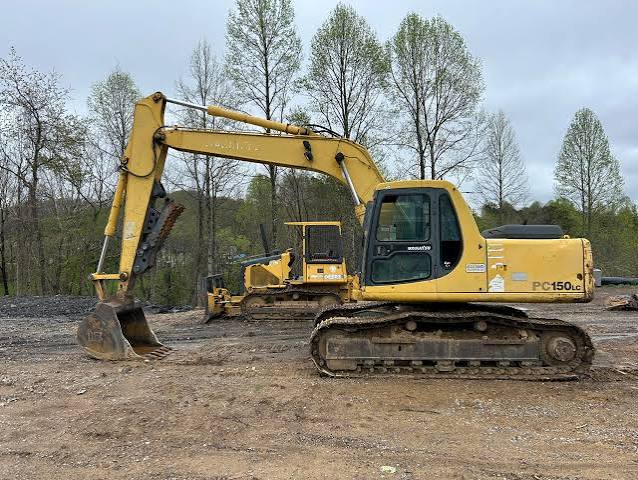

Komatsu PC150LC-6 Excavator
1 / 5
Image 1 of 5
Image: gulfsouthequip.com

Specifications

49 data points

Operating Specifications

Operating Specifications specifications
Operating Weight39,463 lb
Fuel Capacity66.1 gal
Hydraulic Pump Flow Capacity57.1 gal/min
Hydraulic System Fluid Capacity31.8 gal
Hydraulic System Relief Valve Pressure5,050 psi

Engine

Engine specifications
Engine ModelSA4D102E
Displacement239 in³
Power Measured @2,100 rpm
Net Power104.6 hp

Dimensions

Dimensions specifications
Ground Clearance18 in
Height - Top of Cab114 in
Length of Track on Ground128 in
Tail Swing Radius96 in
Width to Outside of Tracks110 in
Removal Counterweight Clearance41 in

Undercarriage

Undercarriage specifications
Ground Pressure6 psi
Track Gauge86 in
Max Travel Speed3.5 mph
Shoe Size24 in

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth205 in
Max Reach Along Ground323 in
Max Loading Height243 in
Max Vertical Wall Digging Depth178 in
Max Cutting Height346 in
Shipping Length of Unit336 in
Shipping Height of Unit124 in

Bucket

Bucket specifications
Reference Bucket Capacity0.90 yd³
Maximum Bucket Capacity1.50 yd³
Minimum Bucket Capacity0.60 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed12 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth222 in
Max Vertical Wall Digging Depth199 in
Max Cutting Height349 in
Max Loading Height246 in
Max Reach Along Ground336 in
Shipping Length of Unit337 in
Shipping Height of Unit118 in

Boom/Stick Excavator Option 3

Boom/Stick Excavator Option 3 specifications
Max Digging Depth235 in
Max Cutting Height350 in
Max Loading Height250 in
Max Vertical Wall Digging Depth224 in
Max Reach Along Ground347 in
Shipping Length of Unit337 in

Boom/Stick Excavator Option 4

Boom/Stick Excavator Option 4 specifications
Max Digging Depth247 in
Max Cutting Height357 in
Max Reach Along Ground357 in
Max Loading Height256 in
Max Vertical Wall Dig Depth227 in
Shipping Length of Unit339 in
