Komatsu

PC158USLC-2

Excavator

Operating Weight
36,376 lb
Max Digging Depth
211 in
Max Digging Depth
230 in
Net Power
99.3 hp
All excavators

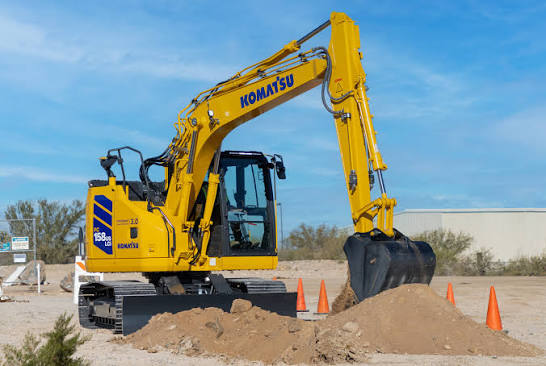

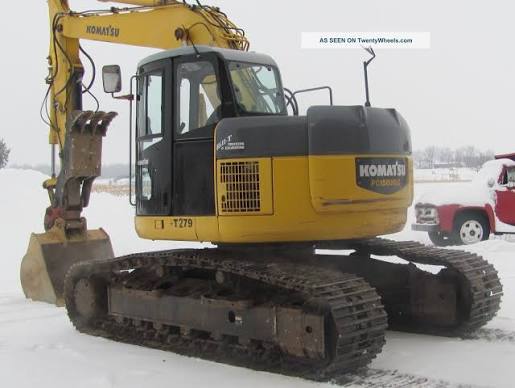

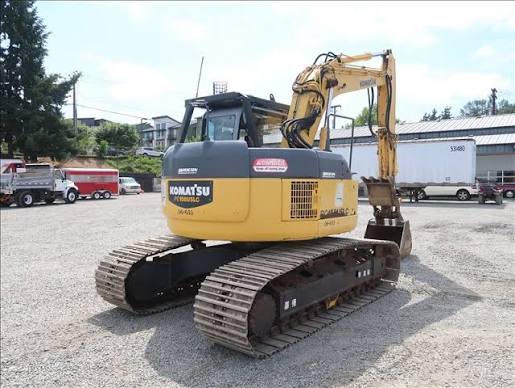

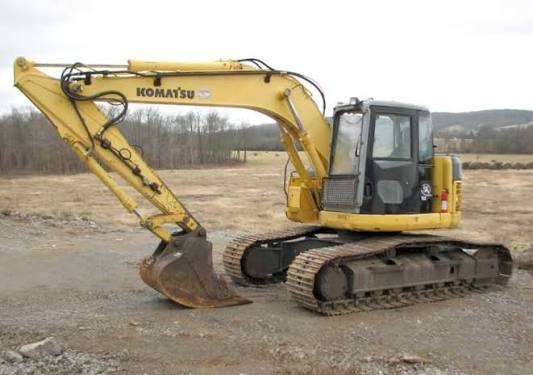

Komatsu PC158USLC-2 Excavator
1 / 5
Image 1 of 5
Image: jmwood.com

Specifications

45 data points

Operating Specifications

Operating Specifications specifications
Operating Weight36,376 lb
Fuel Capacity52.9 gal
Hydraulic Pump Flow Capacity62.7 gal/min
Hydraulic System Fluid Capacity31.8 gal
Engine Oil Capacity4.7 gal
Cooling System Fluid Capacity4.9 gal
Swing Drive Fluid Capacity0.7 gal

Engine

Engine specifications
Engine ModelS4D102E-1
Displacement239 in³
Power Measured @2,300 rpm
Gross Power104.6 hp
Net Power99.3 hp
AspirationTurbocharged
Engine MakeKomatsu
Stroke5 in
Bore4 in

Dimensions

Dimensions specifications
Ground Clearance18 in
Height - Top of Cab119 in
Length of Track on Ground157 in
Tail Swing Radius61 in
Width to Outside of Tracks102 in
Removal Counterweight Clearance41 in

Undercarriage

Undercarriage specifications
Ground Pressure6 psi
Track Gauge79 in
Number of Track Rollers per Side7
Max Travel Speed2.7 mph
Shoe Size24 in
Number of Shoes per Side44
Number of Carrier Rollers per Side2
Drawbar Pull34,823 lb

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth211 in
Max Reach Along Ground322 in
Max Loading Height275 in
Max Vertical Wall Digging Depth189 in
Max Cutting Height373 in
Shipping Length of Unit295 in
Shipping Height of Unit114 in

Swing Mechanism

Swing Mechanism specifications
Swing Speed10 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth230 in
Max Vertical Wall Digging Depth206 in
Max Cutting Height390 in
Max Loading Height292 in
Max Reach Along Ground341 in
Shipping Length of Unit292 in
Shipping Height of Unit126 in
