Komatsu

PC200-6

Excavator

Operating Weight
42,285 lb
Max Digging Depth
219 in
Max Digging Depth
240 in
Net Power
132.8 hp
All excavators

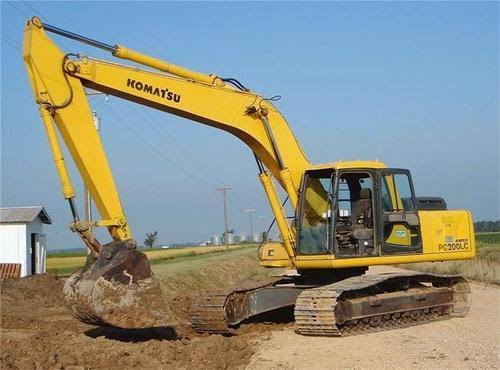

Komatsu PC200-6 Excavator
1 / 5
Image 1 of 5
Image: m.made-in-china.com

Specifications

49 data points

Operating Specifications

Operating Specifications specifications
Operating Weight42,285 lb
Fuel Capacity89.9 gal
Hydraulic Pump Flow Capacity108.9 gal/min
Hydraulic System Fluid Capacity43.9 gal
Hydraulic System Relief Valve Pressure5,050 psi

Engine

Engine specifications
Engine ModelS6D102E
Displacement359 in³
Power Measured @2,200 rpm
Net Power132.8 hp

Dimensions

Dimensions specifications
Ground Clearance18 in
Height - Top of Cab115 in
Length of Track on Ground130 in
Tail Swing Radius109 in
Width to Outside of Tracks110 in
Removal Counterweight Clearance43 in

Undercarriage

Undercarriage specifications
Ground Pressure6 psi
Track Gauge88 in
Max Travel Speed3.5 mph
Shoe Size24 in

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth219 in
Max Reach Along Ground344 in
Max Loading Height239 in
Max Vertical Wall Digging Depth196 in
Max Cutting Height350 in
Shipping Length of Unit376 in
Shipping Height of Unit118 in

Bucket

Bucket specifications
Reference Bucket Capacity1.10 yd³
Maximum Bucket Capacity1.60 yd³
Minimum Bucket Capacity0.71 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed12 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth240 in
Max Vertical Wall Digging Depth210 in
Max Cutting Height356 in
Max Loading Height247 in
Max Reach Along Ground364 in
Shipping Length of Unit374 in
Shipping Height of Unit126 in

Boom/Stick Excavator Option 3

Boom/Stick Excavator Option 3 specifications
Max Digging Depth261 in
Max Cutting Height367 in
Max Loading Height256 in
Max Vertical Wall Digging Depth236 in
Max Reach Along Ground383 in
Shipping Length of Unit372 in

Boom/Stick Excavator Option 4

Boom/Stick Excavator Option 4 specifications
Max Digging Depth305 in
Max Cutting Height383 in
Max Reach Along Ground428 in
Max Loading Height275 in
Max Vertical Wall Dig Depth280 in
Shipping Length of Unit372 in
