Komatsu

PC200-6 CUSTOM

Excavator

Operating Weight
43,872 lb
Max Digging Depth
219 in
Max Digging Depth
240 in
Net Power
128.8 hp
All excavators

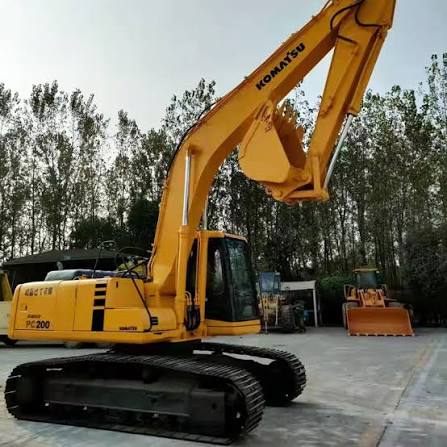

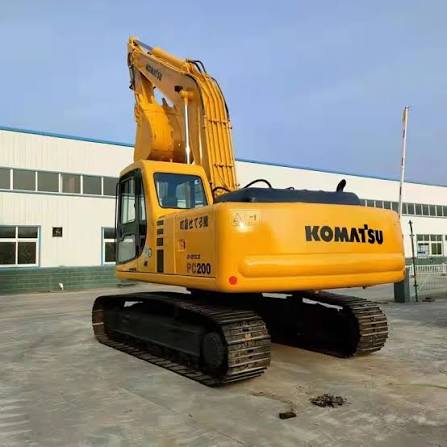

Komatsu PC200-6 CUSTOM Excavator
1 / 5
Image 1 of 5
Image: zzcarstar.en.made-in-china.com

Specifications

49 data points

Operating Specifications

Operating Specifications specifications
Operating Weight43,872 lb
Fuel Capacity89.9 gal
Hydraulic Pump Flow Capacity119.5 gal/min
Hydraulic System Fluid Capacity43.9 gal
Hydraulic System Relief Valve Pressure5,050 psi

Engine

Engine specifications
Engine ModelS6D102E
Displacement359 in³
Power Measured @2,000 rpm
Net Power128.8 hp

Dimensions

Dimensions specifications
Ground Clearance18 in
Height - Top of Cab115 in
Length of Track on Ground130 in
Tail Swing Radius110 in
Width to Outside of Tracks114 in
Removal Counterweight Clearance43 in

Undercarriage

Undercarriage specifications
Ground Pressure5,050 psi
Track Gauge86 in
Max Travel Speed2.4 mph
Shoe Size24 in

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth219 in
Max Reach Along Ground344 in
Max Loading Height239 in
Max Vertical Wall Digging Depth196 in
Max Cutting Height350 in
Shipping Length of Unit376 in
Shipping Height of Unit118 in

Bucket

Bucket specifications
Reference Bucket Capacity0.99 yd³
Maximum Bucket Capacity1.60 yd³
Minimum Bucket Capacity0.71 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed12 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth240 in
Max Vertical Wall Digging Depth210 in
Max Cutting Height356 in
Max Loading Height247 in
Max Reach Along Ground364 in
Shipping Length of Unit374 in
Shipping Height of Unit126 in

Boom/Stick Excavator Option 3

Boom/Stick Excavator Option 3 specifications
Max Digging Depth261 in
Max Cutting Height367 in
Max Loading Height256 in
Max Vertical Wall Digging Depth236 in
Max Reach Along Ground383 in
Shipping Length of Unit372 in

Boom/Stick Excavator Option 4

Boom/Stick Excavator Option 4 specifications
Max Digging Depth305 in
Max Cutting Height383 in
Max Reach Along Ground422 in
Max Loading Height275 in
Max Vertical Wall Dig Depth280 in
Shipping Length of Unit372 in
