Komatsu

PC210NLC-7 SLF

Excavator

Operating Weight
51,269 lb
Max Digging Depth
454 in
Net Power
143.0 hp
All excavators

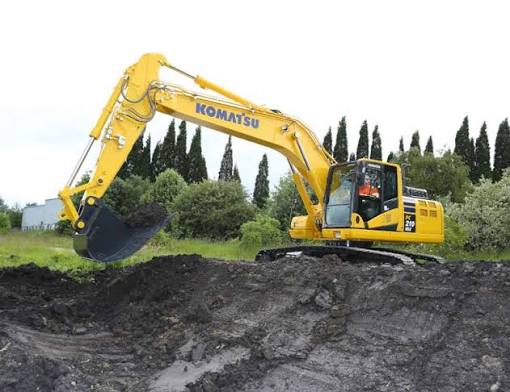

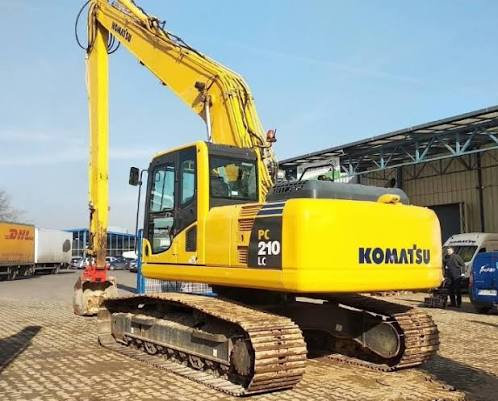

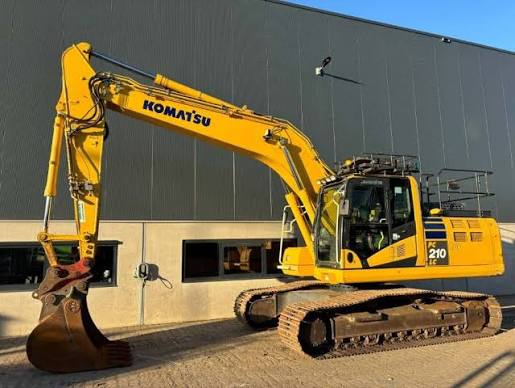

Komatsu PC210NLC-7 SLF Excavator
1 / 5
Image 1 of 5
Image: desimachines.com

Specifications

40 data points

Operating Specifications

Operating Specifications specifications
Operating Weight51,269 lb
Fuel Capacity85.9 gal
Hydraulic Pump Flow Capacity113.1 gal/min
Hydraulic System Fluid Capacity37.8 gal
Hydraulic System Relief Valve Pressure5,405 psi
Engine Oil Capacity6.4 gal
Cooling System Fluid Capacity8.2 gal
Operating Voltage24 V
Swing Drive Fluid Capacity1.8 gal
Alternator Supplied Amperage60 A

Engine

Engine specifications
Engine ModelSAA6D102E-2
Displacement359 in³
Power Measured @1,950 rpm
Net Power143.0 hp
AspirationTurbocharged with aftercooler

Dimensions

Dimensions specifications
Ground Clearance18 in
Height - Top of Cab119 in
Length of Track on Ground144 in
Tail Swing Radius110 in
Width to Outside of Tracks101 in
Removal Counterweight Clearance44 in

Undercarriage

Undercarriage specifications
Ground Pressure8 psi
Track Gauge80 in
Number of Track Rollers per Side9
Max Travel Speed3.5 mph
Shoe Size20 in
Number of Shoes per Side49
Number of Carrier Rollers per Side2
Drawbar Pull40,124 lb

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth454 in
Max Reach Along Ground599 in
Max Loading Height461 in
Max Vertical Wall Digging Depth346 in
Max Cutting Height547 in
Shipping Length of Unit490 in
Shipping Height of Unit134 in

Bucket

Bucket specifications
Reference Bucket Capacity0.50 yd³
Maximum Bucket Capacity0.60 yd³
Minimum Bucket Capacity0.50 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed12 rpm
