Komatsu

PC228USLC-10

Excavator

Operating Weight
52,470 lb
Max Digging Depth
240 in
Max Digging Depth
261 in
Net Power
155.6 hp
All excavators

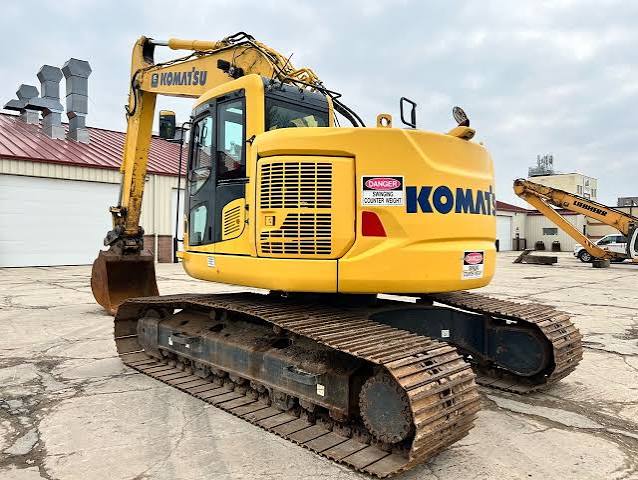

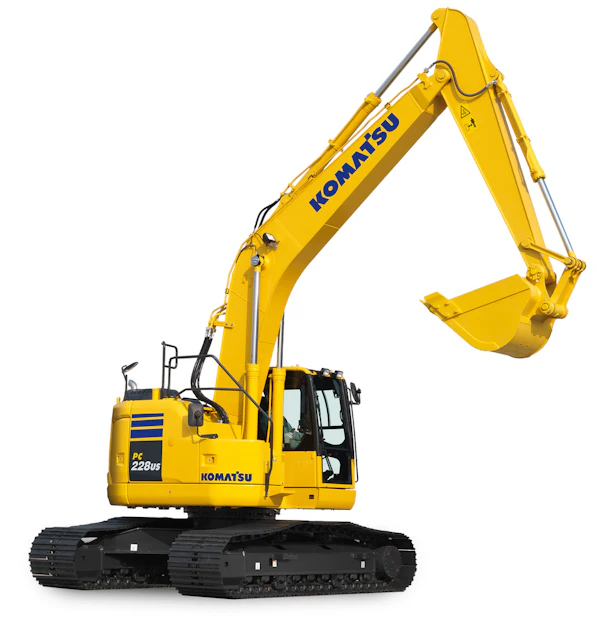

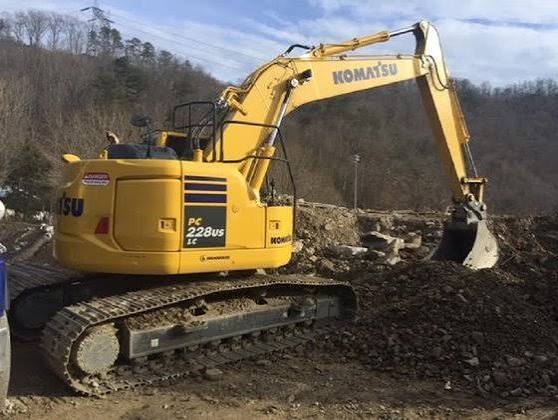

Komatsu PC228USLC-10 Excavator
1 / 5
Image 1 of 5
Image: oemoffhighway.com

Specifications

42 data points

Operating Specifications

Operating Specifications specifications
Operating Weight52,470 lb
Fuel Capacity81.9 gal
Hydraulic Pump Flow Capacity1,254.8 gal/min
Engine Oil Capacity6.2 gal
Swing Drive Fluid Capacity1.8 gal

Engine

Engine specifications
Engine ModelSAA6D107E-2
Displacement408 in³
Power Measured @2,000 rpm
Gross Power165.0 hp
Net Power155.6 hp
AspirationTurbocharged
Engine MakeKomatsu
Stroke5 in
Bore4 in

Dimensions

Dimensions specifications
Ground Clearance18 in
Height - Top of Cab121 in
Length of Track on Ground175 in
Tail Swing Radius72 in
Width to Outside of Tracks118 in
Removal Counterweight Clearance43 in

Undercarriage

Undercarriage specifications
Track Gauge95 in
Number of Track Rollers per Side9
Max Travel Speed3.5 mph
Shoe Size24 in
Number of Shoes per Side49
Number of Carrier Rollers per Side2
Drawbar Pull45,415 lb

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth240 in
Max Reach Along Ground364 in
Max Loading Height295 in
Max Vertical Wall Digging Depth210 in
Max Cutting Height409 in
Shipping Length of Unit354 in
Shipping Height of Unit125 in

Swing Mechanism

Swing Mechanism specifications
Swing Speed11 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth261 in
Max Vertical Wall Digging Depth236 in
Max Cutting Height422 in
Max Loading Height308 in
Max Reach Along Ground383 in
Shipping Length of Unit352 in
Shipping Height of Unit120 in
