Komatsu

PC230LC-6 MIGHTY

Excavator

Operating Weight
53,749 lb
Max Digging Depth
274 in
Net Power
158.3 hp
All excavators

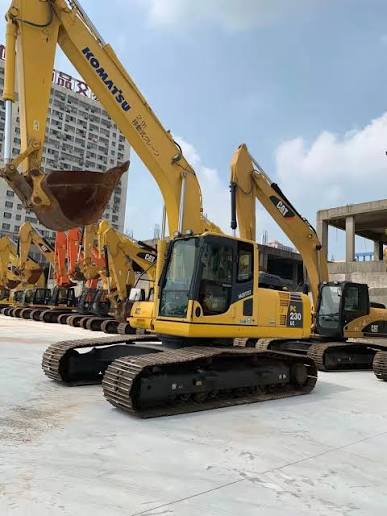

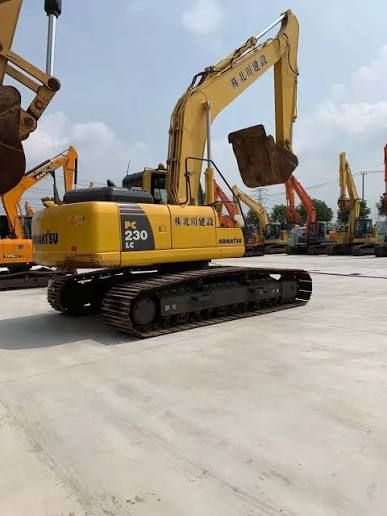

Komatsu PC230LC-6 MIGHTY Excavator
1 / 5
Image 1 of 5
Image: veritread.com

Specifications

28 data points

Operating Specifications

Operating Specifications specifications
Operating Weight53,749 lb
Fuel Capacity89.9 gal
Hydraulic Pump Flow Capacity114.2 gal/min
Hydraulic System Fluid Capacity43.9 gal
Hydraulic System Relief Valve Pressure5,050 psi

Engine

Engine specifications
Engine ModelSA6D102E
Displacement359 in³
Power Measured @2,100 rpm
Net Power158.3 hp

Dimensions

Dimensions specifications
Ground Clearance18 in
Height - Top of Cab115 in
Length of Track on Ground151 in
Tail Swing Radius113 in
Width to Outside of Tracks126 in
Removal Counterweight Clearance43 in

Undercarriage

Undercarriage specifications
Ground Pressure7 psi
Track Gauge102 in
Max Travel Speed3.5 mph
Shoe Size24 in

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth274 in
Max Reach Along Ground395 in
Max Loading Height257 in
Max Vertical Wall Digging Depth238 in
Max Cutting Height370 in
Shipping Length of Unit385 in
Shipping Height of Unit125 in

Bucket

Bucket specifications
Reference Bucket Capacity1.40 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed12 rpm
