Komatsu

PC230NHD-7

Excavator

Operating Weight
49,825 lb
Max Digging Depth
211 in
Max Digging Depth
240 in
Net Power
143.0 hp
All excavators

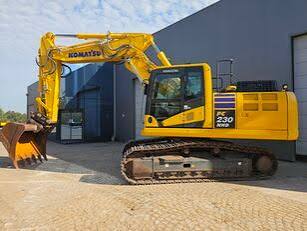

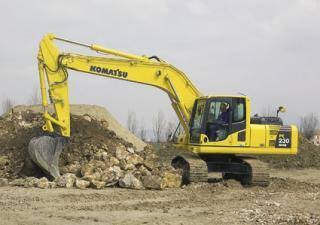

Komatsu PC230NHD-7 Excavator
1 / 5
Image 1 of 5
Image: truck1.eu

Specifications

70 data points

Operating Specifications

Operating Specifications specifications
Operating Weight49,825 lb
Fuel Capacity105.7 gal
Hydraulic Pump Flow Capacity113.1 gal/min
Hydraulic System Fluid Capacity37.8 gal
Hydraulic System Relief Valve Pressure5,405 psi
Engine Oil Capacity6.4 gal
Cooling System Fluid Capacity8.2 gal
Operating Voltage24 V
Swing Drive Fluid Capacity1.8 gal
Alternator Supplied Amperage60 A

Engine

Engine specifications
Engine ModelSAA6D102E-2
Displacement359 in³
Power Measured @1,950 rpm
Net Power143.0 hp
AspirationTurbocharged after-cooled

Dimensions

Dimensions specifications
Ground Clearance19 in
Height - Top of Cab120 in
Length of Track on Ground137 in
Tail Swing Radius110 in
Width to Outside of Tracks101 in
Removal Counterweight Clearance44 in

Undercarriage

Undercarriage specifications
Ground Pressure8 psi
Track Gauge101 in
Number of Track Rollers per Side7
Max Travel Speed3.4 mph
Shoe Size22 in
Number of Shoes per Side47
Number of Carrier Rollers per Side2
Drawbar Pull45,349 lb

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth211 in
Max Reach Along Ground342 in
Max Loading Height263 in
Max Vertical Wall Digging Depth182 in
Max Cutting Height376 in
Shipping Length of Unit376 in
Shipping Height of Unit118 in

Swing Mechanism

Swing Mechanism specifications
Swing Speed12 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth240 in
Max Vertical Wall Digging Depth214 in
Max Cutting Height388 in
Max Loading Height269 in
Max Reach Along Ground362 in
Shipping Length of Unit377 in
Shipping Height of Unit126 in

Boom/Stick Excavator Option 3

Boom/Stick Excavator Option 3 specifications
Max Digging Depth260 in
Max Cutting Height395 in
Max Loading Height282 in
Max Vertical Wall Digging Depth235 in
Max Reach Along Ground383 in
Shipping Length of Unit374 in

Boom/Stick Excavator Option 4

Boom/Stick Excavator Option 4 specifications
Max Digging Depth199 in
Max Cutting Height400 in
Max Reach Along Ground356 in
Max Loading Height284 in
Max Vertical Wall Dig Depth162 in
Shipping Length of Unit391 in

Boom/Stick Excavator Option 5

Boom/Stick Excavator Option 5 specifications
Max Digging Depth223 in
Max Reach Along Ground378 in
Max Cutting Height414 in
Max Loading Height298 in
Max Vertical Wall Dig Depth196 in
Shipping Height of Unit121 in
Shipping Length of Unit386 in

Boom/Stick Excavator Option 6

Boom/Stick Excavator Option 6 specifications
Max Digging Depth244 in
Max Reach Along Ground398 in
Max Cutting Height427 in
Max Loading Height312 in
Max Vertical Wall Dig Depth209 in
Shipping Length of Unit385 in
Shipping Height of Unit120 in
