Komatsu

PC250LC-6

Excavator

Operating Weight
60,627 lb
Max Digging Depth
222 in
Max Digging Depth
241 in
Net Power
171.7 hp
All excavators

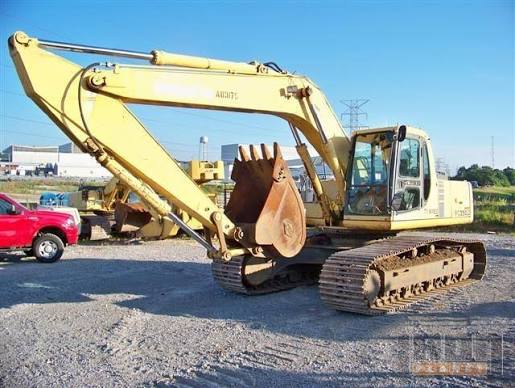

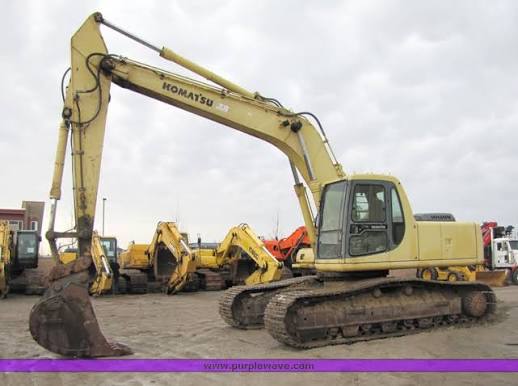

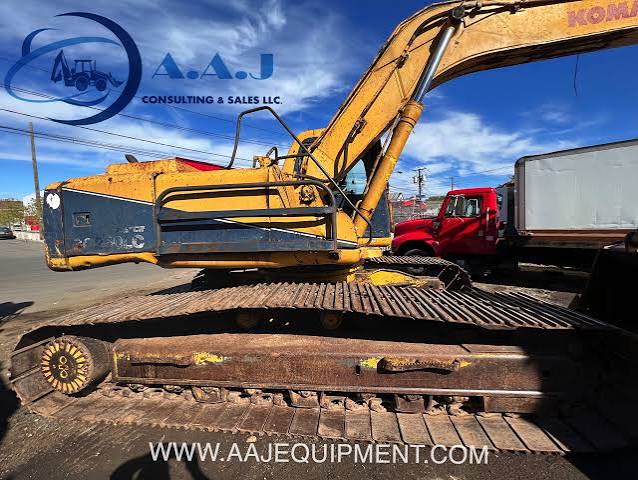

Komatsu PC250LC-6 Excavator
1 / 5
Image 1 of 5
Image: machinerymarketplace.net

Specifications

49 data points

Operating Specifications

Operating Specifications specifications
Operating Weight60,627 lb
Fuel Capacity81.9 gal
Hydraulic Pump Flow Capacity113.6 gal/min
Hydraulic System Fluid Capacity43.9 gal
Hydraulic System Relief Valve Pressure5,050 psi

Engine

Engine specifications
Engine ModelSA6D102
Displacement359 in³
Power Measured @2,300 rpm
Net Power171.7 hp

Dimensions

Dimensions specifications
Ground Clearance20 in
Height - Top of Cab120 in
Length of Track on Ground156 in
Tail Swing Radius113 in
Width to Outside of Tracks130 in
Removal Counterweight Clearance48 in

Undercarriage

Undercarriage specifications
Ground Pressure7 psi
Track Gauge102 in
Max Travel Speed3.2 mph
Shoe Size28 in

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth222 in
Max Reach Along Ground356 in
Max Loading Height257 in
Max Vertical Wall Digging Depth194 in
Max Cutting Height367 in
Shipping Length of Unit383 in
Shipping Height of Unit122 in

Bucket

Bucket specifications
Reference Bucket Capacity1.40 yd³
Maximum Bucket Capacity2.11 yd³
Minimum Bucket Capacity0.99 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed12 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth241 in
Max Vertical Wall Digging Depth199 in
Max Cutting Height369 in
Max Loading Height251 in
Max Reach Along Ground372 in
Shipping Length of Unit388 in
Shipping Height of Unit151 in

Boom/Stick Excavator Option 3

Boom/Stick Excavator Option 3 specifications
Max Digging Depth263 in
Max Cutting Height380 in
Max Loading Height267 in
Max Vertical Wall Digging Depth233 in
Max Reach Along Ground394 in
Shipping Length of Unit385 in

Boom/Stick Excavator Option 4

Boom/Stick Excavator Option 4 specifications
Max Digging Depth281 in
Max Cutting Height385 in
Max Reach Along Ground409 in
Max Loading Height281 in
Max Vertical Wall Dig Depth244 in
Shipping Length of Unit385 in
