Komatsu

PC30-1

Mini Excavator

Operating Weight
7,050 lb
Max Digging Depth
121 in
Net Power
26.2 hp
All mini excavators

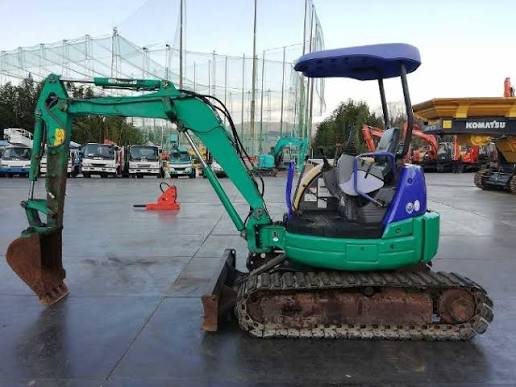

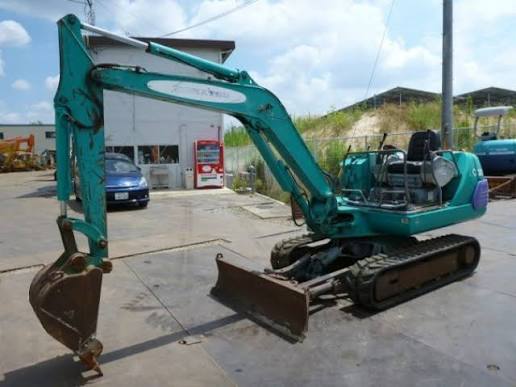

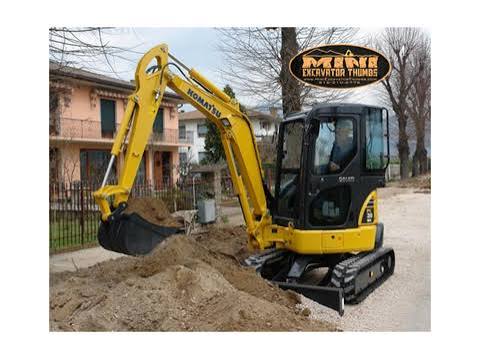

Komatsu PC30-1 Mini Excavator
1 / 5
Image 1 of 5
Image: komatsu.com

Specifications

26 data points

Operating Specifications

Operating Specifications specifications
Operating Weight7,050 lb
Fuel Capacity10.6 gal
Hydraulic Pump Flow Capacity25.1 gal/min
Hydraulic System Fluid Capacity13.3 gal
Hydraulic System Relief Valve Pressure2,490 psi

Engine

Engine specifications
Engine Model3D84-IB
Displacement86 in³
Net Power26.2 hp

Dimensions

Dimensions specifications
Ground Clearance13 in
Height - Top of Cab93 in
Length of Track on Ground62 in
Tail Swing Radius57 in
Width to Outside of Tracks62 in
Removal Counterweight Clearance23 in

Undercarriage

Undercarriage specifications
Ground Pressure4 psi
Track Gauge55 in
Max Travel Speed1.4 mph
Shoe Size12 in

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth121 in
Max Reach Along Ground192 in
Max Vertical Wall Digging Depth85 in
Max Loading Height104 in
Shipping Length of Unit193 in
Max Cutting Height156 in
Shipping Height of Unit93 in

Swing Mechanism

Swing Mechanism specifications
Swing Speed13 rpm
