Komatsu

PC30R-8

Mini Excavator

Operating Weight
7,033 lb
Max Digging Depth
115 in
Net Power
27.7 hp
All mini excavators

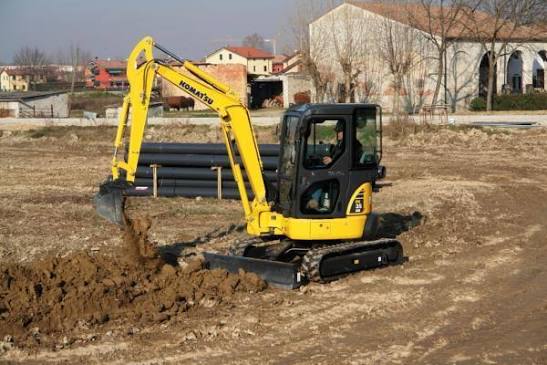

Komatsu PC30R-8 Mini Excavator
1 / 5
Image 1 of 5
Image: miniexcavatorcentre.com

Specifications

38 data points

Operating Specifications

Operating Specifications specifications
Operating Weight7,033 lb
Fuel Capacity13.3 gal
Hydraulic Pump Flow Capacity22.5 gal/min
Hydraulic System Fluid Capacity8.8 gal
Hydraulic System Relief Valve Pressure3,560 psi

Engine

Engine specifications
Engine Model3D84E
Displacement91 in³
Power Measured @2,700 rpm
Net Power27.7 hp
Number of Cylinders3

Dimensions

Dimensions specifications
Ground Clearance12 in
Height - Top of Cab100 in
Length of Track on Ground64 in
Tail Swing Radius55 in
Width to Outside of Tracks60 in
Removal Counterweight Clearance24 in

Undercarriage

Undercarriage specifications
Ground Pressure4 psi
Track Gauge49 in
Max Travel Speed2.9 mph
Shoe Size12 in

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth115 in
Max Reach Along Ground192 in
Max Vertical Wall Digging Depth86 in
Max Loading Height135 in
Shipping Length of Unit192 in
Max Cutting Height193 in
Shipping Height of Unit96 in

Bucket

Bucket specifications
Reference Bucket Capacity0.20 yd³
Maximum Bucket Capacity0.20 yd³
Minimum Bucket Capacity0.10 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed9 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth127 in
Max Cutting Height203 in
Max Loading Height144 in
Max Vertical Wall Digging Depth102 in
Max Reach Along Ground206 in
Shipping Height of Unit96 in
Shipping Length of Unit196 in
