Komatsu
Hitachi
EX30-2
Mini Excavator
40 specifications
1 / 5
Image 1 of 5
Specifications
33 data points
Operating Specifications
| Operating Weight | 10,571 lb |
|---|---|
| Fuel Capacity | 17.2 gal |
| Hydraulic Pump Flow Capacity | 37.2 gal/min |
| Hydraulic System Fluid Capacity | 5.3 gal |
| Hydraulic System Relief Valve Pressure | 3,840 psi |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 40 A |
| Engine Oil Capacity | 2.0 gal |
| Cooling System Fluid Capacity | 2.3 gal |
Engine
| Engine Model | 4D88E-6 |
|---|---|
| Displacement | 134 in³ |
| Power Measured @ | 2,400 rpm |
| Net Power | 38.2 hp |
Dimensions
| Ground Clearance | 15 in |
|---|---|
| Height - Top of Cab | 101 in |
| Tail Swing Radius | 42 in |
| Width to Outside of Tracks | 78 in |
| Removal Counterweight Clearance | 24 in |
Undercarriage
| Ground Pressure | 4 psi |
|---|---|
| Track Gauge | 62 in |
| Number of Track Rollers per Side | 4 |
| Max Travel Speed | 2.9 mph |
| Shoe Size | 16 in |
| Number of Carrier Rollers per Side | 1 |
| Drawbar Pull | 9,440 lb |
Boom/Stick Excavator Option 1
| Max Digging Depth | 145 in |
|---|---|
| Max Reach Along Ground | 233 in |
| Max Vertical Wall Digging Depth | 121 in |
| Max Loading Height | 161 in |
| Shipping Length of Unit | 210 in |
| Max Cutting Height | 226 in |
| Shipping Height of Unit | 101 in |
Swing Mechanism
| Swing Speed | 9 rpm |
|---|

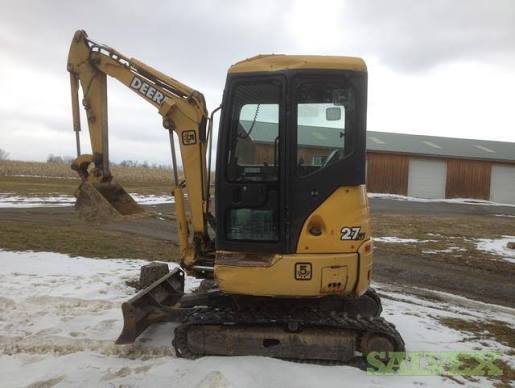

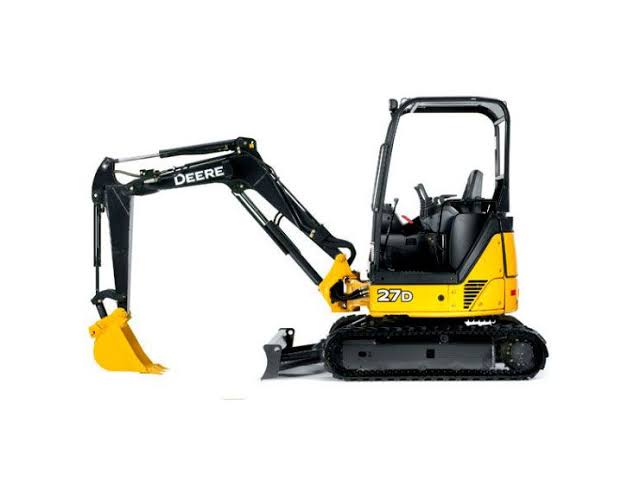

Comparable machines
