Komatsu

PC75-1

Mini Excavator

Operating Weight
16,314 lb
Max Digging Depth
143 in
Net Power
68.4 hp
All mini excavators

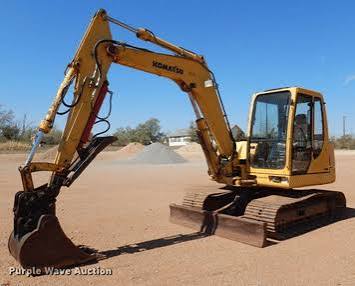

Komatsu PC75-1 Mini Excavator
1 / 5
Image 1 of 5
Image: machineryline.com

Specifications

37 data points

Operating Specifications

Operating Specifications specifications
Operating Weight16,314 lb
Fuel Capacity26.5 gal
Hydraulic Pump Flow Capacity44.2 gal/min
Hydraulic System Fluid Capacity18.5 gal
Hydraulic System Relief Valve Pressure3,840 psi

Engine

Engine specifications
Engine Model4D98E
Displacement203 in³
Power Measured @2,300 rpm
Net Power68.4 hp
Number of Cylinders4

Dimensions

Dimensions specifications
Ground Clearance17 in
Height - Top of Cab106 in
Tail Swing Radius59 in
Width to Outside of Tracks81 in
Removal Counterweight Clearance30 in

Undercarriage

Undercarriage specifications
Ground Pressure5 psi
Track Gauge66 in
Max Travel Speed3.2 mph
Shoe Size18 in

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth143 in
Max Reach Along Ground250 in
Max Vertical Wall Digging Depth96 in
Max Loading Height176 in
Shipping Length of Unit234 in
Max Cutting Height240 in
Shipping Height of Unit106 in

Bucket

Bucket specifications
Reference Bucket Capacity0.41 yd³
Maximum Bucket Capacity0.41 yd³
Minimum Bucket Capacity0.20 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed10 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth168 in
Max Cutting Height251 in
Max Loading Height186 in
Max Vertical Wall Digging Depth111 in
Max Reach Along Ground263 in
Shipping Height of Unit106 in
Shipping Length of Unit238 in
