Komatsu
Caterpillar

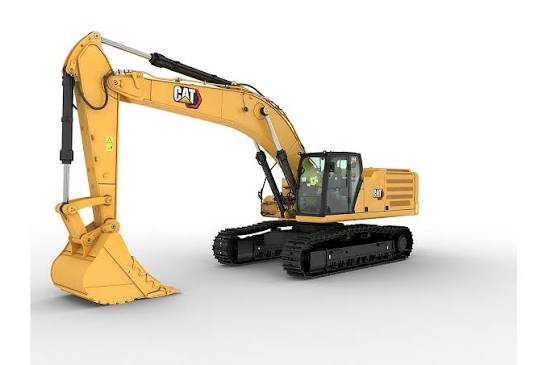

350 L
Excavator
57 specifications
1 / 5
Image 1 of 5
Specifications
69 data points
Operating Specifications
| Operating Weight | 179,900 lb |
|---|---|
| Operating Weight w/o Attachment | 196,959 lb |
| Fuel Capacity | 258.9 gal |
| Hydraulic Pump Flow Capacity | 261.0 gal/min |
| Hydraulic System Relief Valve Pressure | 4,980 psi |
| Cooling System Fluid Capacity | 26.5 gal |
| Operating Voltage | 24 V |
| Swing Drive Fluid Capacity | 13.0 gal |
| Alternator Supplied Amperage | 75 A |
| Max Drawbar Pull | 125,660 lb |
Engine
| Engine Model | SAA6D140E-5 |
|---|---|
| Power Measured @ | 1,800 rpm |
| Number of Cylinders | 6 |
Hydraulic System
| Pump Type | Variable-capacity piston pumps |
|---|---|
| Pump Capacity | 261.1 gal/min |
| Relief Pressure | 4,980 psi |
Dimensions
| Ground Clearance | 33 in |
|---|---|
| Height - Top of Cab | 141 in |
| Length of Track on Ground | 198 in |
| Tail Swing Radius | 174 in |
| Width to Outside of Tracks | 157 in |
| Removal Counterweight Clearance | 61 in |
Transmission
| Max Speed | 2.7 mph |
|---|---|
| Transmission Type | Hydrostatic |
| Number of Forward Gears | 2 |
Undercarriage
| Track Gauge | 138 in |
|---|---|
| Number of Track Rollers per Side | 9 |
| Max Travel Speed | 2.6 mph |
| Shoe Size | 40 in |
| Number of Shoes per Side | 51 |
| Number of Carrier Rollers per Side | 3 |
| Drawbar Pull | 125,668 lb |
Boom/Stick Excavator Option 1
| Max Digging Depth | 340 in |
|---|---|
| Max Reach Along Ground | 530 in |
| Max Loading Height | 322 in |
| Max Vertical Wall Digging Depth | 220 in |
| Max Cutting Height | 467 in |
| Shipping Length of Unit | 568 in |
| Shipping Height of Unit | 185 in |
Bucket
| Reference Bucket Capacity | 4.09 yd³ |
|---|
Swing Mechanism
| Swing Speed | 7 rpm |
|---|---|
| Swing Torque | 209,458 lb-ft |
Boom/Stick Excavator Option 2
| Max Digging Depth | 378 in |
|---|---|
| Max Vertical Wall Digging Depth | 259 in |
| Max Cutting Height | 473 in |
| Max Loading Height | 328 in |
| Max Reach Along Ground | 564 in |
| Shipping Length of Unit | 569 in |
| Shipping Height of Unit | 222 in |
Boom/Stick Excavator Option 3
| Max Digging Depth | 418 in |
|---|---|
| Max Cutting Height | 500 in |
| Max Loading Height | 350 in |
| Max Vertical Wall Digging Depth | 312 in |
| Max Reach Along Ground | 606 in |
| Shipping Length of Unit | 557 in |
| Shipping Height of Unit | 247 in |
Boom/Stick Mat. Handler Option 1
| Boom/Stick Option (MAT) 1 | 2-piece front 16.8m 55' |
|---|---|
| Max Depth | 222 in |
| Max Height | 725 in |
| Max Reach Along Ground | 662 in |
Boom/Stick Mat. Handler Option 2
| Boom/Stick Option (MAT) 2 | 2-piece front 20.7m 68' |
|---|---|
| Max Depth | 300 in |
| Max Height | 875 in |
| Max Reach Along Ground | 816 in |
Track Undercarriage
| Shoe Size | 32 in |
|---|---|
| Number of Track Rollers per Side | 9 |
| Length of Track on Ground | 198 in |
| Number of Shoes per Side | 51 |
| Track Gauge | 138 in |
