Hitachi

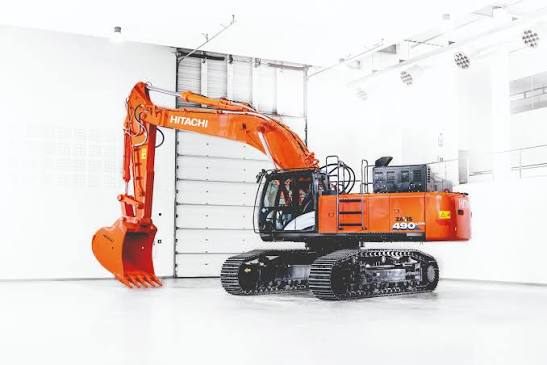

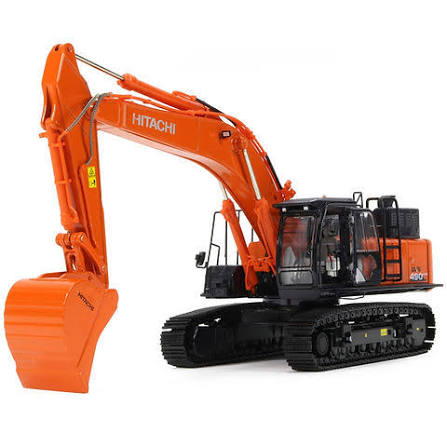

ZX490LCH-6
- Operating Weight
- 108,908 lb
- Max Digging Depth
- 228 in
- Max Digging Depth
- 243 in
- Net Power
- 362.1 hp
1 / 5
Image 1 of 5
Specifications
46 data points
Operating Specifications
| Operating Weight | 108,908 lb |
|---|---|
| Fuel Capacity | 178.4 gal |
| Hydraulic Pump Flow Capacity | 211.4 gal/min |
| Hydraulic System Fluid Capacity | 134.8 gal |
| Engine Oil Capacity | 10.9 gal |
| Cooling System Fluid Capacity | 16.4 gal |
| Operating Voltage | 24 V |
| Swing Drive Fluid Capacity | 1.8 gal |
Engine
| Engine Model | AQ-6UZ1X |
|---|---|
| Displacement | 601 in³ |
| Power Measured @ | 2,000 rpm |
| Gross Power | 362.1 hp |
| Net Power | 362.1 hp |
| Engine Make | Isuzu |
| Stroke | 6 in |
| Bore | 5 in |
Dimensions
| Ground Clearance | 30 in |
|---|---|
| Height - Top of Cab | 132 in |
| Length of Track on Ground | 474 in |
| Tail Swing Radius | 145 in |
| Width to Outside of Tracks | 151 in |
Undercarriage
| Ground Pressure | 12 psi |
|---|---|
| Max Travel Speed | 3.5 mph |
| Shoe Size | 24 in |
| Number of Shoes per Side | 53 |
Boom/Stick Excavator Option 1
| Max Digging Depth | 228 in |
|---|---|
| Max Reach Along Ground | 402 in |
| Max Loading Height | 289 in |
| Max Vertical Wall Digging Depth | 168 in |
| Max Cutting Height | 420 in |
Swing Mechanism
| Swing Speed | 10 rpm |
|---|
Boom/Stick Excavator Option 2
| Max Digging Depth | 243 in |
|---|---|
| Max Vertical Wall Digging Depth | 183 in |
| Max Cutting Height | 426 in |
| Max Loading Height | 294 in |
| Max Reach Along Ground | 414 in |
Boom/Stick Excavator Option 3
| Max Digging Depth | 284 in |
|---|---|
| Max Cutting Height | 401 in |
| Max Loading Height | 280 in |
| Max Vertical Wall Digging Depth | 169 in |
| Max Reach Along Ground | 437 in |
Boom/Stick Excavator Option 4
| Max Digging Depth | 306 in |
|---|---|
| Max Cutting Height | 435 in |
| Max Reach Along Ground | 467 in |
| Max Loading Height | 301 in |
| Max Vertical Wall Dig Depth | 280 in |
