Liebherr

R954C

Excavator

Operating Weight
108,470 lb
Max Digging Depth
280 in
Max Digging Depth
301 in
Net Power
326.0 hp
All excavators

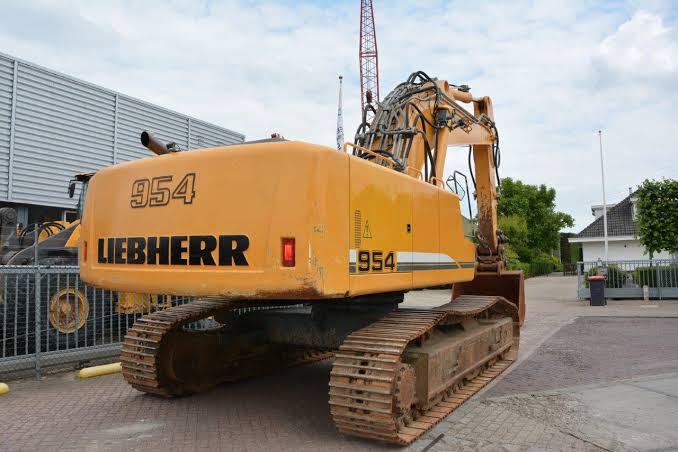

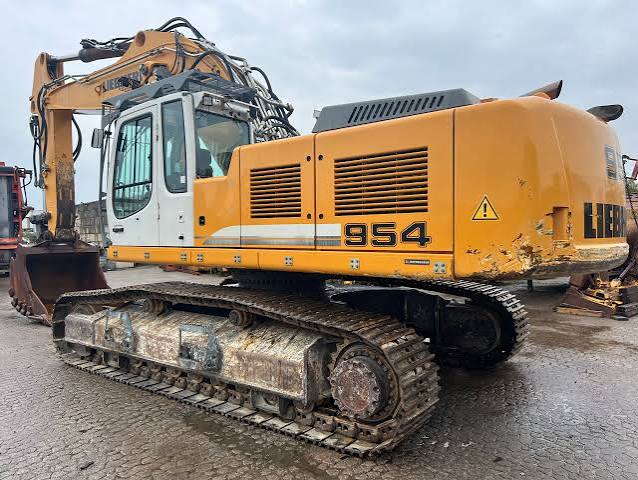

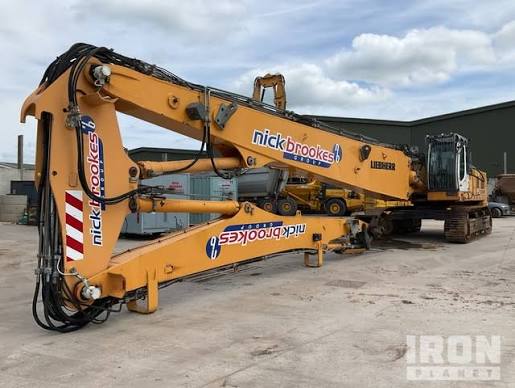

Liebherr R954C Excavator
1 / 5
Image 1 of 5
Image: constructionscalemodels.com

Specifications

56 data points

Operating Specifications

Operating Specifications specifications
Operating Weight108,470 lb
Fuel Capacity185.0 gal
Hydraulic Pump Flow Capacity92.5 gal/min
Hydraulic System Fluid Capacity208.7 gal
Operating Voltage24 V
Alternator Supplied Amperage80 A

Engine

Engine specifications
Engine ModelD 936 L
Displacement641 in³
Power Measured @1,800 rpm
Net Power326.0 hp
Aspirationturbo-charged and after-cooled reduced emissions

Dimensions

Dimensions specifications
Ground Clearance22 in
Length of Track on Ground174 in
Tail Swing Radius149 in
Width to Outside of Tracks139 in

Undercarriage

Undercarriage specifications
Max Travel Speed3.0 mph
Shoe Size20 in
Drawbar Pull96,443 lb

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth280 in
Max Reach Along Ground430 in
Max Loading Height280 in
Max Cutting Height414 in
Shipping Length of Unit475 in
Shipping Height of Unit150 in

Bucket

Bucket specifications
Reference Bucket Capacity3.10 yd³
Maximum Bucket Capacity4.00 yd³
Minimum Bucket Capacity2.69 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed6 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth301 in
Max Cutting Height426 in
Max Loading Height291 in
Max Reach Along Ground451 in
Shipping Length of Unit475 in
Shipping Height of Unit150 in

Boom/Stick Excavator Option 3

Boom/Stick Excavator Option 3 specifications
Max Digging Depth337 in
Max Cutting Height444 in
Max Loading Height306 in
Max Reach Along Ground485 in
Shipping Length of Unit475 in

Boom/Stick Excavator Option 4

Boom/Stick Excavator Option 4 specifications
Max Digging Depth300 in
Max Cutting Height461 in
Max Reach Along Ground469 in
Max Loading Height322 in
Shipping Length of Unit519 in

Boom/Stick Excavator Option 5

Boom/Stick Excavator Option 5 specifications
Max Digging Depth322 in
Max Reach Along Ground489 in
Max Cutting Height473 in
Max Loading Height333 in
Shipping Height of Unit156 in
Shipping Length of Unit515 in

Boom/Stick Excavator Option 6

Boom/Stick Excavator Option 6 specifications
Max Digging Depth356 in
Max Reach Along Ground524 in
Max Cutting Height494 in
Max Loading Height353 in
Shipping Length of Unit516 in
Shipping Height of Unit158 in
