Komatsu
Hyundai
HL730TM-7A

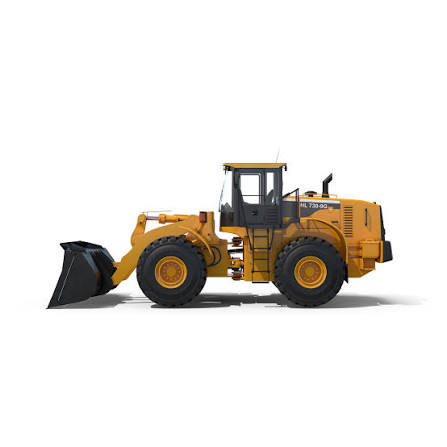

Wheel Loader
43 specifications
1 / 5
Image 1 of 5
Specifications
41 data points
Operating Specifications
| Operating Weight | 16,436 lb |
|---|---|
| Fuel Capacity | 31.8 gal |
| Tire Size | 455/70 R24 SPT 9 |
| Hydraulic System Fluid Capacity | 22.5 gal |
| Static Tipping Weight | 13,371 lb |
| Operating Voltage | 12 V |
| Turning Radius | 179 in |
| Engine Oil Fluid Capacity | 3.7 gal |
| Rear Axle Oscillation | 24 ° |
| Alternator Supplied Amperage | 80 A |
| Front Axle/Diff Fluid Capacity | 1.2 gal |
| Rear Axle/Diff Fluid Capacity | 1.2 gal |
| Cooling System Fluid Capacity | 4.0 gal |
| Transmission Fluid Capacity | 0.5 gal |
Engine
| Engine Model | S4D 106-1HC |
|---|---|
| Displacement | 269 in³ |
| Gross Power | 87.0 hp |
| Number of Cylinders | 4 |
| Aspiration | Turbocharger |
Hydraulic System
| Pump Flow Capacity | 30.4 gal/min |
|---|---|
| Raise Time | 4.9 s |
| Lower Time | 3.7 s |
| Dump Time | 1.5 s |
| Relief Valve Setting | 3,046 psi |
| Pump Type | closed hydraulic system |
Dimensions
| Ground Clearance | 16 in |
|---|---|
| Height - Top of Cab | 119 in |
| Wheelbase | 97 in |
| Width Over Tires | 88 in |
| Reach at Max Lift and Dump | 32 in |
| Length with Bucket on Ground | 236 in |
| Hinge Pin - Max Height | 142 in |
Transmission
| Max Speed - Forward | 12.5 mph |
|---|---|
| Max Speed - Reverse | 12.5 mph |
| Transmission Type | Hydrostatic |
| Number of Forward Gears | 2 |
| Number of Reverse Gears | 2 |
Bucket
| Bucket Capacity - heaped | 1.80 yd³ |
|---|---|
| Dump Clearance at Max Raise | 110 in |
| Breakout Force | 16,478 lb |
| Bucket Width | 91 in |
