Komatsu

WA250-5

Wheel Loader

Operating Weight
25,507 lb
Bucket Capacity - heaped
2.80 yd³
Gross Power
135.0 hp
All wheel loaders

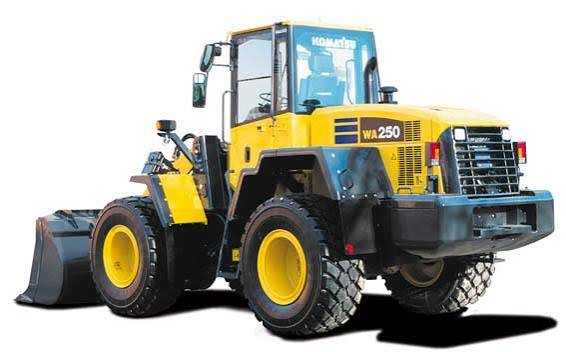

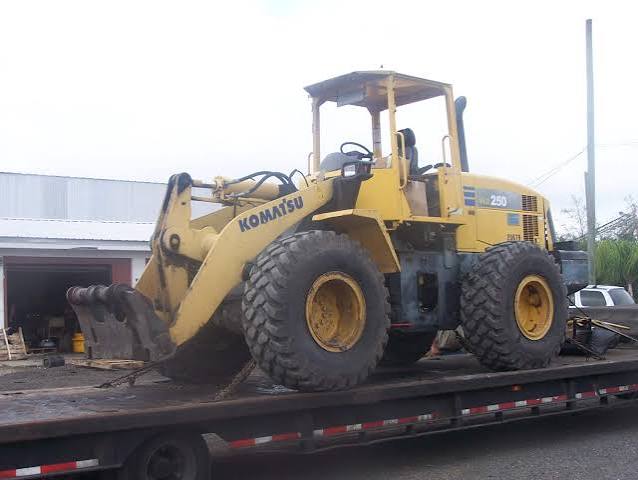

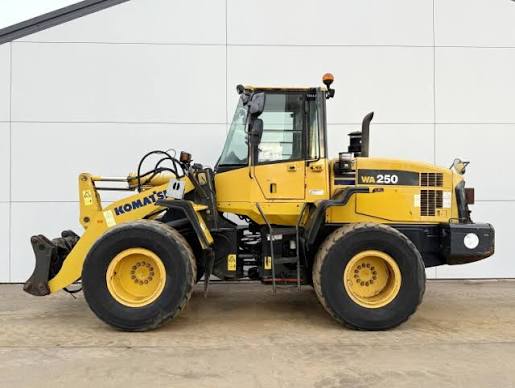

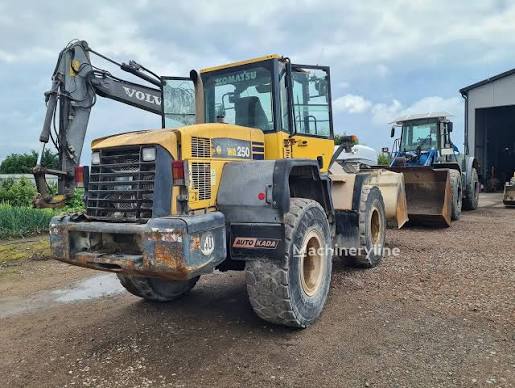

Komatsu WA250-5 Wheel Loader
1 / 5
Image 1 of 5
Image: victoriaequipment.co.ug

Specifications

43 data points

Operating Specifications

Operating Specifications specifications
Operating Weight25,507 lb
Fuel Capacity47.9 gal
Tire Size20.5 R25
Hydraulic System Fluid Capacity17.7 gal
Static Tipping Weight22,068 lb
Operating Voltage24 V
Turning Radius206 in
Engine Oil Fluid Capacity5.2 gal
Rear Axle Oscillation30 °
Alternator Supplied Amperage60 A
Front Axle/Diff Fluid Capacity4.8 gal
Rear Axle/Diff Fluid Capacity4.8 gal
Cooling System Fluid Capacity4.7 gal
Transmission Fluid Capacity1.9 gal

Engine

Engine specifications
Engine ModelSAA6 D102 E
Displacement360 in³
Power Measured @2,000 rpm
Gross Power135.0 hp
Number of Cylinders6
AspirationTurbocharged
Torque Measured @1,400 rpm

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity43.1 gal/min
Raise Time6.3 s
Lower Time3.3 s
Dump Time1.7 s
Relief Valve Setting3,046 psi
Pump TypeGear Pump

Dimensions

Dimensions specifications
Ground Clearance19 in
Height - Top of Cab128 in
Wheelbase115 in
Width Over Tires98 in
Reach at Max Lift and Dump41 in
Length with Bucket on Ground274 in
Hinge Pin - Max Height150 in

Transmission

Transmission specifications
Max Speed - Forward23.7 mph
Max Speed - Reverse23.7 mph
Transmission TypeElectronically controlled hydrostatic
Number of Forward Gears4
Number of Reverse Gears4

Bucket

Bucket specifications
Bucket Capacity - heaped2.80 yd³
Dump Clearance at Max Raise115 in
Breakout Force28,101 lb
Bucket Width101 in
