Komatsu

WA250-5L

Wheel Loader

Operating Weight
25,507 lb
Gross Power
135.0 hp
All wheel loaders

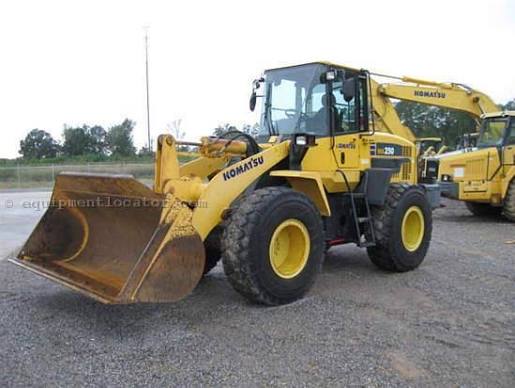

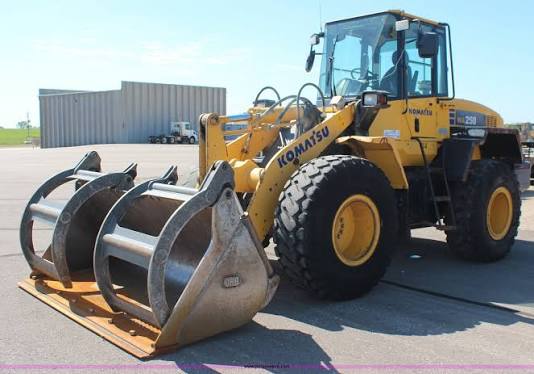

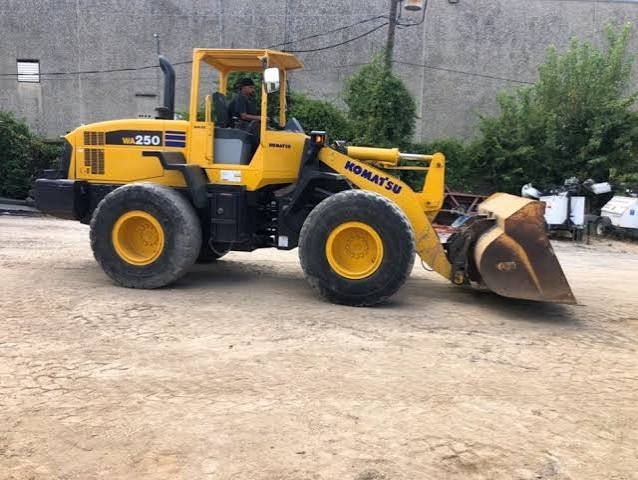

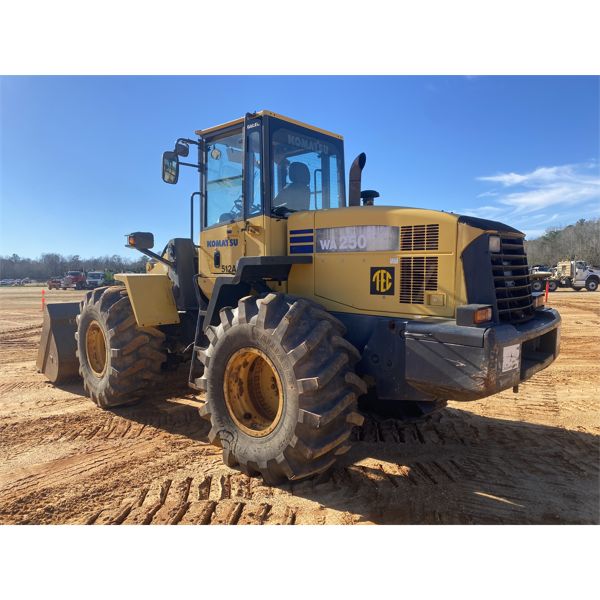

Komatsu WA250-5L Wheel Loader
1 / 5
Image 1 of 5
Image: jmwood.com

Specifications

39 data points

Operating Specifications

Operating Specifications specifications
Operating Weight25,507 lb
Fuel Capacity47.8 gal
Tire Size20.5-25
Hydraulic System Fluid Capacity17.7 gal
Static Tipping Weight22,068 lb
Operating Voltage24 V
Turning Radius206 in
Engine Oil Fluid Capacity5.2 gal
Rear Axle Oscillation30 °
Alternator Supplied Amperage60 A
Front Axle/Diff Fluid Capacity4.8 gal
Rear Axle/Diff Fluid Capacity4.8 gal
Cooling System Fluid Capacity4.6 gal
Transmission Fluid Capacity1.8 gal

Engine

Engine specifications
Engine ModelSAA6 D102E
Displacement360 in³
Power Measured @2,000 rpm
Gross Power135.0 hp
Number of Cylinders6
AspirationTURBOCHARGED
Torque Measured @1,400 rpm

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity43.1 gal/min
Raise Time6.3 s
Lower Time3.3 s
Dump Time1.7 s
Relief Valve Setting3,046 psi
Pump TypeGEAR PUMP

Dimensions

Dimensions specifications
Ground Clearance18 in
Height - Top of Cab127 in
Wheelbase114 in
Width Over Tires97 in
Reach at Max Lift and Dump40 in
Length with Bucket on Ground272 in
Hinge Pin - Max Height149 in

Transmission

Transmission specifications
Max Speed - Forward23.6 mph
Max Speed - Reverse23.6 mph
Transmission TypeHYDROSTATIC
Number of Forward Gears4
Number of Reverse Gears4
