Komatsu

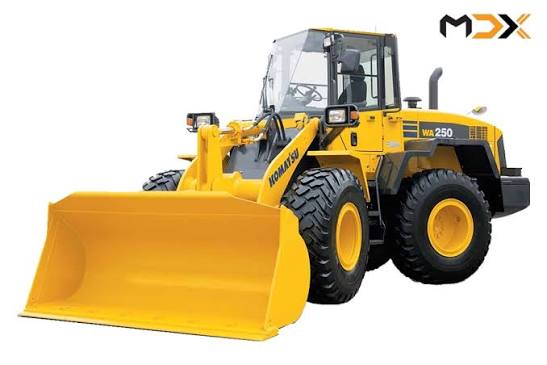

WA250-6
- Operating Weight
- 25,448 lb
- Bucket Capacity - heaped
- 3.00 yd³
- Gross Power
- 140.0 hp
- Net Power
- 138.0 hp
1 / 5
Image 1 of 5
Specifications
40 data points
Operating Specifications
| Operating Weight | 25,448 lb |
|---|---|
| Fuel Capacity | 49.1 gal |
| Hydraulic System Fluid Capacity | 17.7 gal |
| Static Tipping Weight | 26,367 lb |
| Turning Radius | 475 in |
| Engine Oil Fluid Capacity | 6.1 gal |
| Front Axle/Diff Fluid Capacity | 4.8 gal |
| Rear Axle/Diff Fluid Capacity | 4.8 gal |
| Cooling System Fluid Capacity | 5.8 gal |
| Rated Bucket Capacity | 2.50 – 3.51 yd³ |
Engine
| Engine Model | SAA6D107E-1 |
|---|---|
| Displacement | 408 in³ |
| Power Measured @ | 2,000 rpm |
| Gross Power | 140.0 hp |
| Net Power | 138.0 hp |
| Number of Cylinders | 6 |
| Aspiration | Turbo-charged |
Weights
| Operating Weight | 25,441 – 25,904 lb |
|---|
Hydraulic System
| Pump Flow Capacity | 20.6 gal/min |
|---|---|
| Raise Time | 6.3 s |
| Lower Time | 3.6 s |
| Dump Time | 1.7 s |
| Relief Valve Setting | 3,000 psi |
| Pump Type | Gear type pump |
Dimensions
| Ground Clearance | 18 in |
|---|---|
| Height - Top of Cab | 126 in |
| Wheelbase | 114 in |
| Width Over Tires | 97 in |
| Length with Bucket on Ground | 278 in |
| Hinge Pin - Max Height | 150 in |
Transmission
| Max Speed - Forward | 23.6 mph |
|---|---|
| Max Speed - Reverse | 23.6 mph |
| Transmission Type | Hydrostatic 1 pump 2 motors with speed range select |
| Number of Forward Gears | 4 |
| Number of Reverse Gears | 4 |
Bucket
| Bucket Capacity - heaped | 3.00 yd³ |
|---|---|
| Bucket Capacity - struck | 2.69 yd³ |
| Dump Clearance at Max Raise | 113 in |
| Breakout Force | 27,210 lb |
| Bucket Width | 107 in |
