Komatsu

WA800-3 Tier 2

Wheel Loader

Operating Weight
224,650 lb
Bucket Capacity - heaped
14.40 yd³
Gross Power
853.0 hp
Net Power
808.0 hp
All wheel loaders

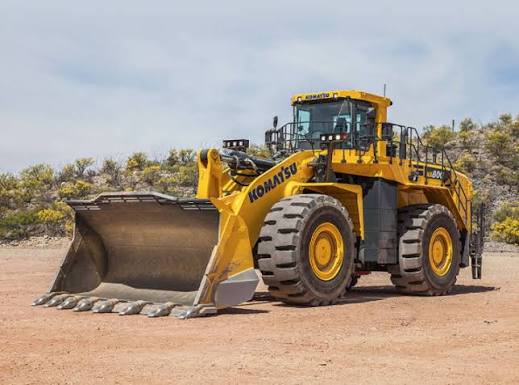

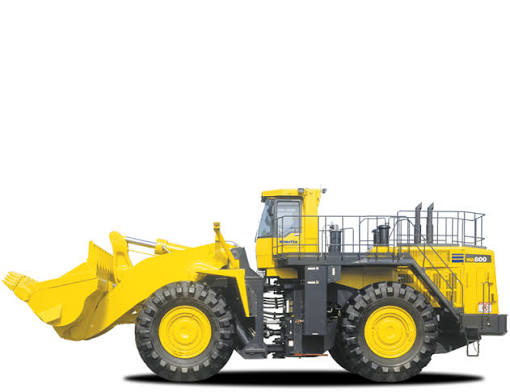

Komatsu WA800-3 Tier 2 Wheel Loader
1 / 5
Image 1 of 5
Image: komatsu.com

Specifications

46 data points

Operating Specifications

Operating Specifications specifications
Operating Weight224,650 lb
Fuel Capacity410.8 gal
Tire Size45/65-45-45
Hydraulic System Fluid Capacity191.5 gal
Static Tipping Weight134,680 lb
Operating Voltage24 V
Turning Radius430 in
Engine Oil Fluid Capacity34.3 gal
Rear Axle Oscillation22 °
Alternator Supplied Amperage90 A
Front Axle/Diff Fluid Capacity95.1 gal
Rear Axle/Diff Fluid Capacity95.1 gal
Cooling System Fluid Capacity89.0 gal
Transmission Fluid Capacity37.0 gal
Rated Bucket Capacity13.11 – 18.30 yd³

Engine

Engine specifications
Engine ModelSAA12V140E-3
Displacement1,860 in³
Power Measured @2,000 rpm
Gross Power853.0 hp
Net Power808.0 hp
Number of Cylinders12
AspirationTurbocharged and Aftercooled

Weights

Weights specifications
Operating Weight224,650 – 230,380 lb

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity107.0 gal/min
Raise Time11.2 s
Lower Time4.8 s
Dump Time2.0 s
Relief Valve Setting4,550 psi
Pump TypePiston pump

Dimensions

Dimensions specifications
Ground Clearance23 in
Height - Top of Cab209 in
Wheelbase215 in
Width Over Tires181 in
Reach at Max Lift and Dump95 in
Length with Bucket on Ground551 in
Hinge Pin - Max Height268 in

Transmission

Transmission specifications
Max Speed - Forward17.4 mph
Max Speed - Reverse17.6 mph
Transmission TypeFull-powershift
Number of Forward Gears3
Number of Reverse Gears3

Bucket

Bucket specifications
Bucket Capacity - heaped14.40 yd³
Bucket Capacity - struck12.20 yd³
Dump Clearance at Max Raise182 in
Breakout Force152,120 lb
Bucket Width190 in
