Komatsu

WS16-2

Scraper

Gross Power
210.0 hp
Max Speed - Forward
37.3 mph
All scrapers

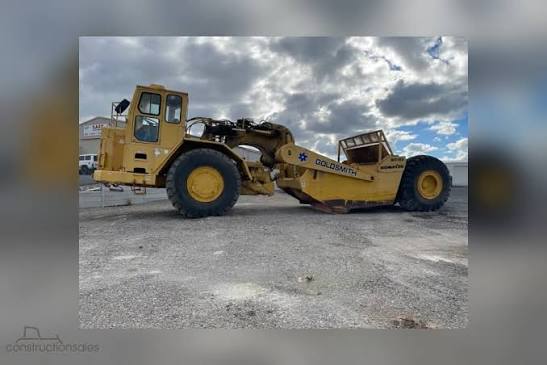

Komatsu WS16-2 Scraper
1 / 5
Image 1 of 5
Image: salesandauctions.com.au

Specifications

33 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity166.5 gal
Tire Size33.5-33-20PR
Cooling System Fluid Capacity33.9 gal
Transmission Fluid Capacity21.2 gal
Engine Oil Fluid Capacity18.5 gal
Differential Fluid Capacity68.7 gal

Weights

Weights specifications
Total Operating - empty74,075 lb
Total Operating - Loaded122,577 lb
Front Axle - empty37,038 lb
Rear Axle - empty37,038 lb
Front Axel - loaded58,837 lb
Rear Axle - loaded63,740 lb

Dimensions

Dimensions specifications
Height - Top of Cab145 in
Wheelbase292 in
Overall Length509 in
Overall Width130 in
Overall Height145 in
Tractor Ground Clearance19 in

Transmission

Transmission specifications
Max Speed - Forward37.3 mph
Number of Forward Gears6
Number of Reverse Gears1
Transmission TypePlanetary gear

Bowl

Bowl specifications
Heaped Capacity21.01 yd³
Width of Cut120 in
Max Depth of Cut12 in
Rated Payload48,502 lb
Struck Capacity14.40 yd³

Scraper Engine

Scraper Engine specifications
Gross Power210.0 hp
Displacement743 in³
MakeKomatsu

Tractor Engine

Tractor Engine specifications
Gross Power210.0 hp
Displacement743 in³
MakeKomatsu
